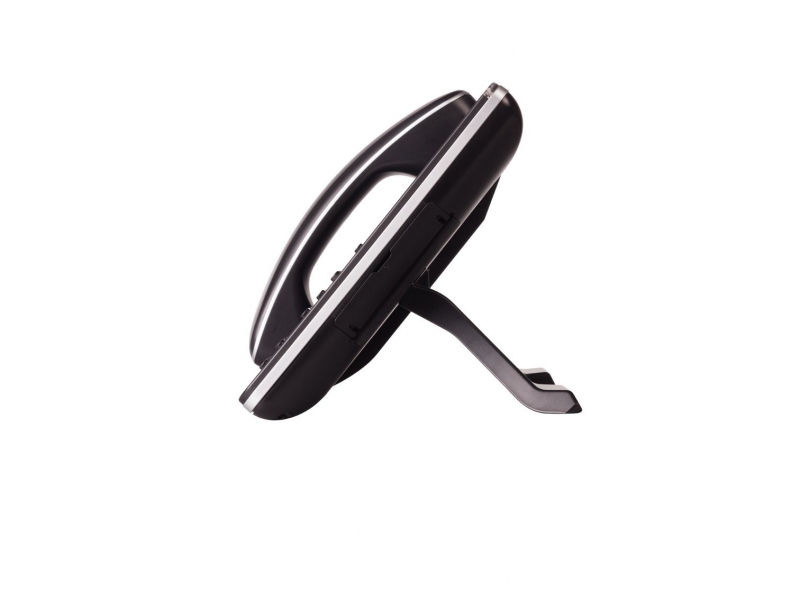

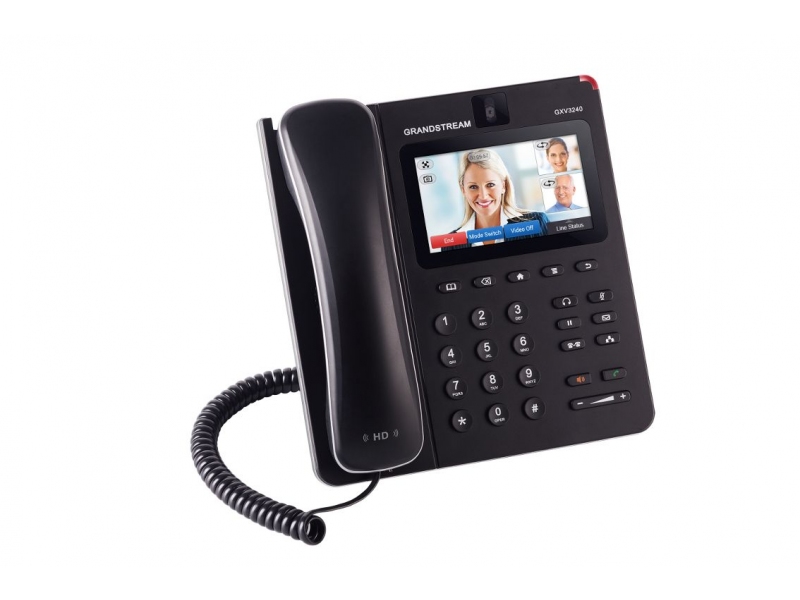

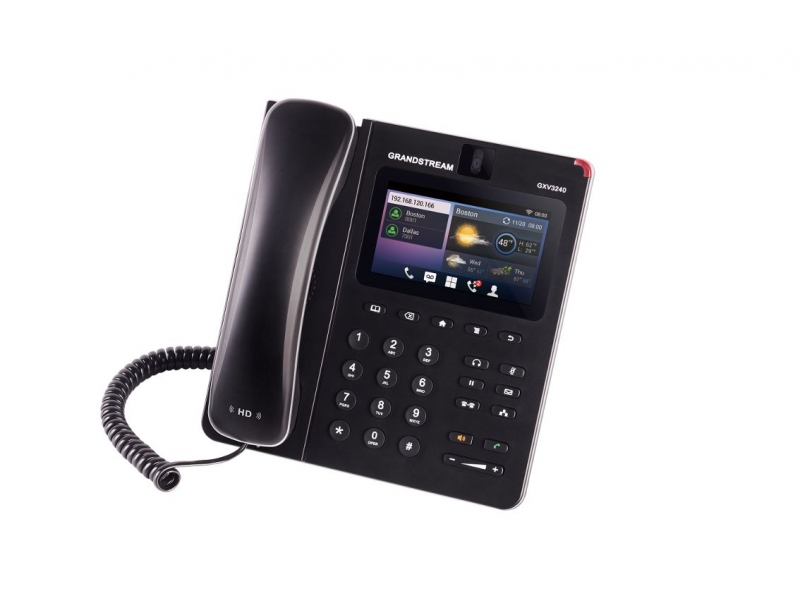

Grandstream GXV3240 Video IP Phone

Download GXV3240 Datasheet (eng)

Available to quote:

GXV3240

Request a Quote
SPECIFICATIONS
Interfaces
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port headset jack (allowing EHS with Plantronics headsets) (RJ9);
  • 1-Port 3.5 mm stereo headset with microphone;
  • 2-Port USB;
  • 1 SD card slot;
  • 1-Port mini-HDMI
WLAN
Wi-Fi: IEEE 802.11 b/g/n (2.4GHz)
Bluetooth: Bluetooth 4.0 + EDR
Camera

Tiltable mega pixel CMOS camera with privacy shutter
Screen

7" capacitive (5 points) touch screen TFT LCD;

Resolution: 1024x600.
Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Supported codecs
Voice codecs: G.711μ/a; G.722 (wide-band); G.726-32; iLBC, Opus; G.729; DTMF (In audio, RFC2833, SIP INFO); VAD; CNG; AEC; PLC; AJB; AGC
Video codecs: H.264 BP/MP/HP; H.263 CIF/QCIF resolution; video resolution up to 720p; frame rate up to 30 fps; bit rate up to 2Mbps; 3-way video conference; anti-flickering; auto focus and auto exposure; PIP (Picture-in-Picture), on-screen-display; camera block; still picture capture/store; video recording; visual voice message indicator
Environmental Conditions
Relative Humidity

10 to 90%
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
Output: 12 VDC / 1.5 А
DC PSU:
Type: PoE (802.3at)
Power consumption

up to 18 W
Dimensions (HxWxD)

85.2 x 196.5 x 206.2 mm

(3.35 x 7.73 x 8.12 in)
Maximum Weight

0.92 kg (2.03 lb)
