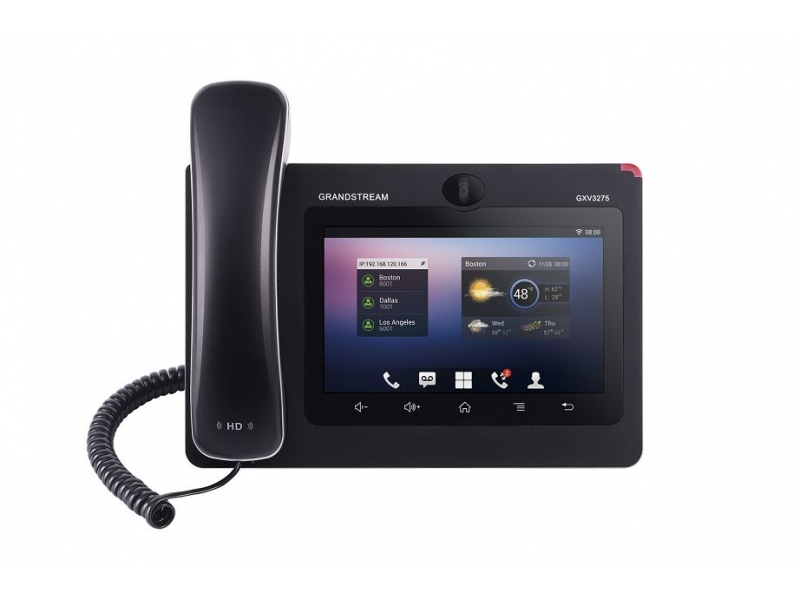

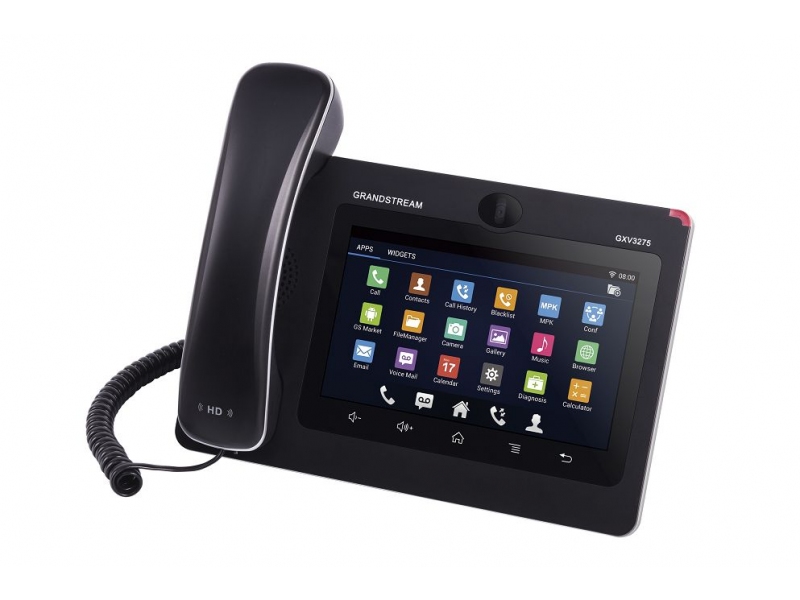

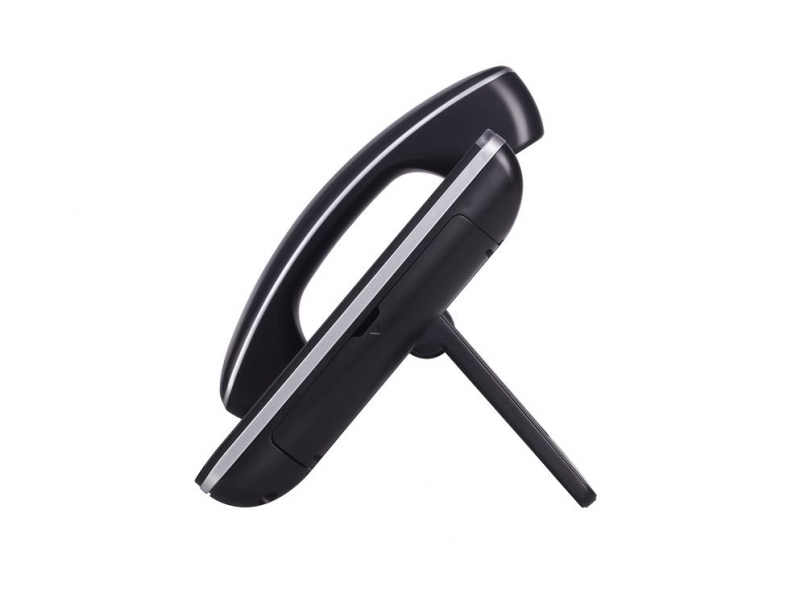

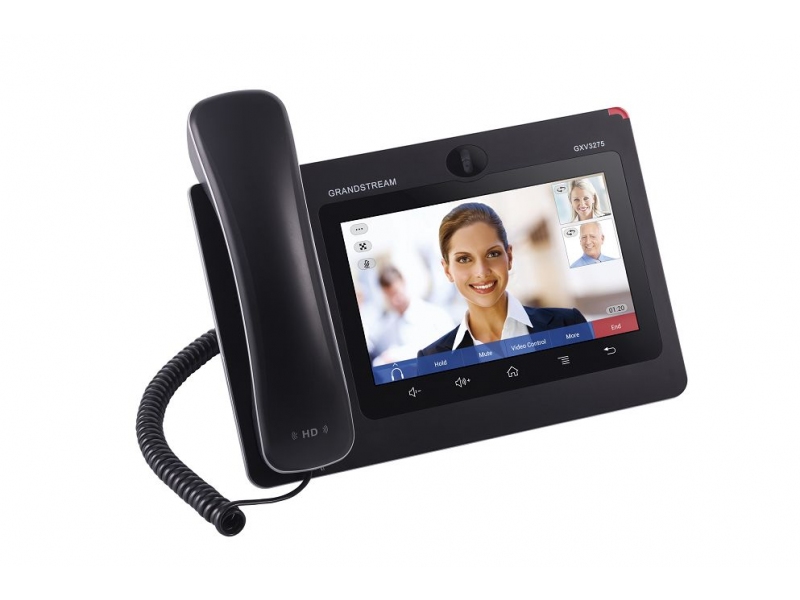

Grandstream GXV3275 Video IP Phone

Download GXV3275 Datasheet (eng)

Available to quote:

GXV3275

Request a Quote

SPECIFICATIONS

Interfaces

2-Port 10/100/1000MbE (RJ45) PoE;
1-Port headset jack (allowing EHS with Plantronics headsets) (RJ9);
1-Port 3.5 mm stereo headset with microphone;
2-Port USB;
1 SD card slot;
1-Port mini-HDMI

WLAN

Wi-Fi:	IEEE 802.11 b/g/n (2.4GHz)
Bluetooth:	Bluetooth 4.0 + EDR

Camera

Tiltable mega pixel CMOS camera with privacy shutter

Screen

7" capacitive (5 points) touch screen TFT LCD;

Resolution: 1024x600.

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

Supported codecs

Voice codecs:	G.711μ/a; G.722 (wide-band); G.726-32; iLBC, Opus; G.729; DTMF (In audio, RFC2833, SIP INFO); VAD; CNG; AEC; PLC; AJB; AGC
Video codecs:	H.264 BP/MP/HP; H.263 CIF/QCIF resolution; video resolution up to 720p; frame rate up to 30 fps; bit rate up to 2Mbps

Environmental Conditions

Relative Humidity

10 to 90%

Operating Temperature

0 to 40°C (32 to 104°F)

Power Supply

Power Supply Unit (PSU)

AC PSU:
Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz.
Output:	12 VDC / 1.5 А
DC PSU:
Type:	PoE (802.3at)

Power consumption

up to 18 W

Dimensions (HxWxD)

52 x 211 х 84 mm

(2.047 x 8.3 x 3.3 in)

Maximum Weight

1.08 kg (2.38 lb)
