| Interfaces | |
|

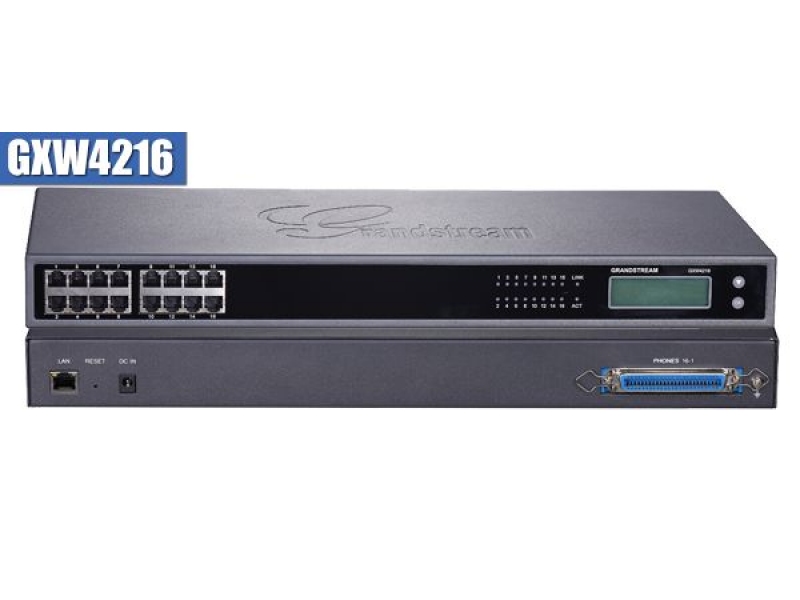

| GXW4216: |
- 16-Port FXS (RJ11);
- 1-Interface FXS (RJ21);
- 1-Port 10/100/1000MbE (RJ45)
|

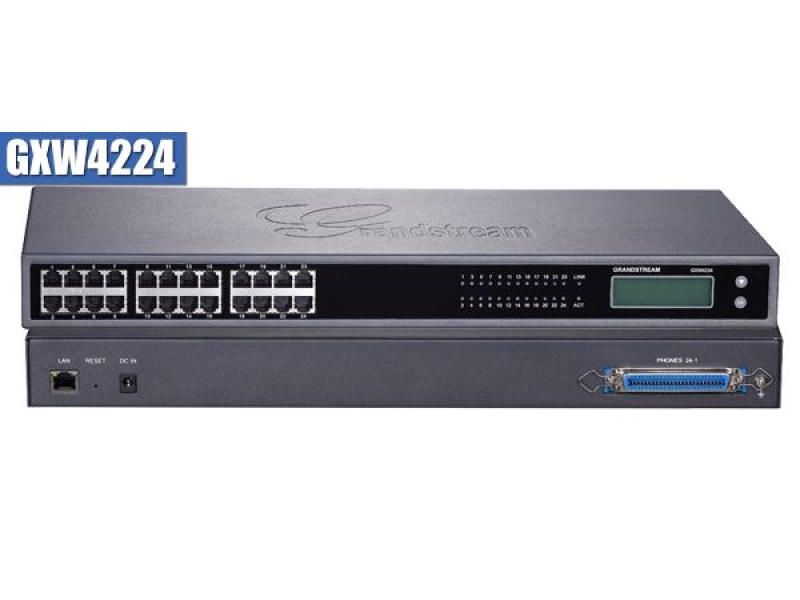

| GXW4224: |
- 24-Port FXS (RJ11);
- 1-Interface FXS (RJ21);
- 1-Port 10/100/1000MbE (RJ45)
|

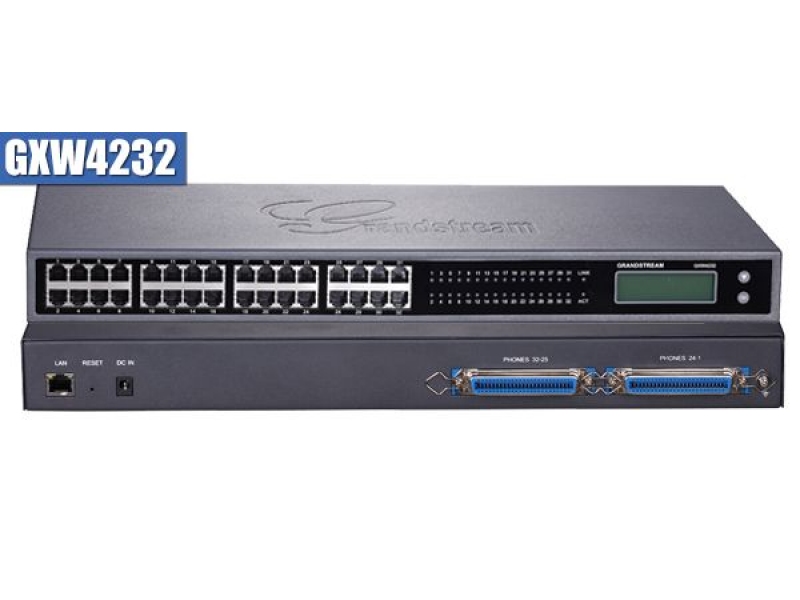

| GXW4232: |
- 32-Port FXS (RJ11);
- 1-Interface FXS (RJ21);
- 1-Port 10/100/1000MbE (RJ45)
|

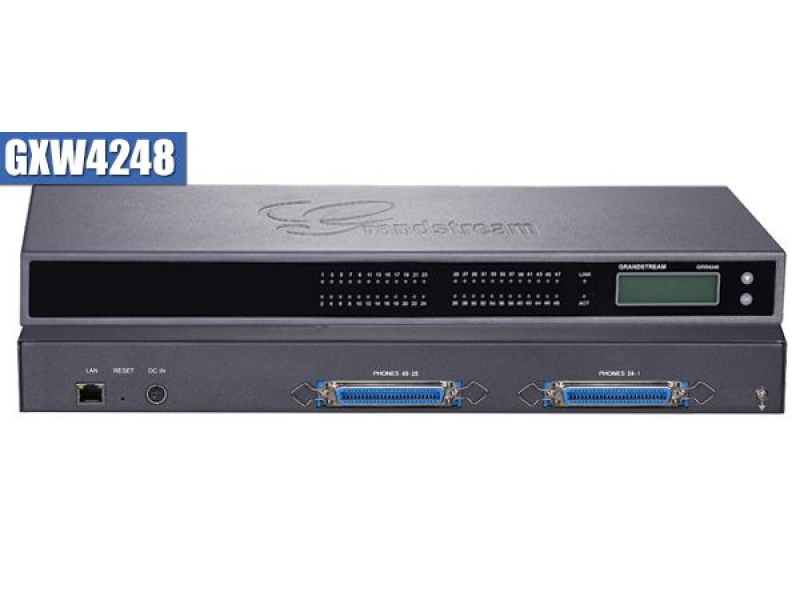

| GXW4248: |
- 2-Interface FXS (RJ21);
- 1-Port 10/100/1000MbE (RJ45)
|
|
| Supported protocols | |
| TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP, TFTP, TR069, SIP (RFC 3261) |
| Supported codecs | |
| G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC.
|
| Maximum subscribers | |
|
| GXW4216: |
16 |
| GXW4224: |
24 |
| GXW4232: |
32 |
| GXW4248: |
48 |
|
| Management | |
| Web-management, Telnet; Syslog, TR-069. |
| Environmental Conditions | |
| Relative Humidity | 10 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
External |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
| Output: |
|
| GXW4216 / GXW4224 / GXW4232 : |
12 VDC / 5A |
| GXW4248: |
24 VDC / 6.25A |
|
|
| DC PSU: |
Not supported |
|
| Maximum power consumption | |
|
| GXW4216: |
24 W |
| GXW4224: |
36.8 W |
| GXW4232: |
43.7 W |
| GXW4248: |
45.5 W |
|
| Dimensions (HxWxD) | |
|
| GXW4216 / 4224 / 4232: |
44 (1U) x 440 x 185 mm
(1.73 (1U) x 17.32 x 7.28 in)
|
| GXW4248: |
44 (1U) x 440 x 255 mm
(1.73 (1U) x 17.32 x 10.04 in)
|
|
| Maximum Weight | |
|
| GXW4216: |
2.39 kg (5.26 lb) |
| GXW4224: |
2.57 kg (5.66 lb) |
| GXW4232: |
2.63 kg (5.79 lb) |
| GXW4248: |
3.21 kg (7.07 lb) |
|
