Grandstream UCM6100 Series IP PBX

Download UCM6100 Datasheet (eng)

End-of-Sale





Request a Quote
SPECIFICATIONS
Interfaces

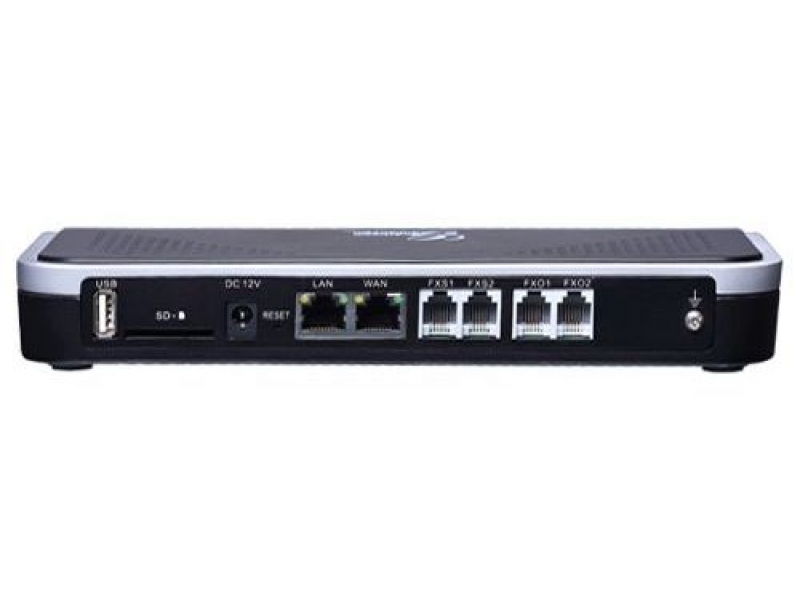

UCM6102:
  • 2-Port FXO (RJ11);
  • 2-Port FXS (RJ45);
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot

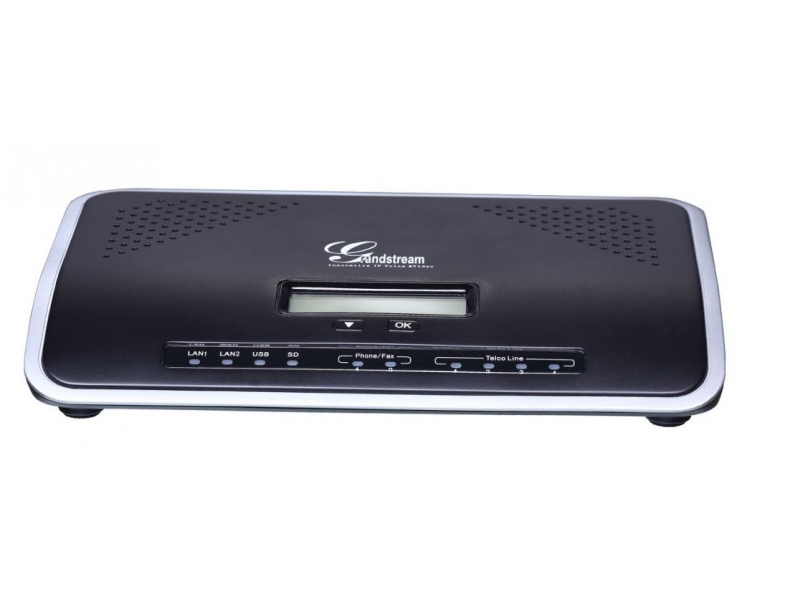

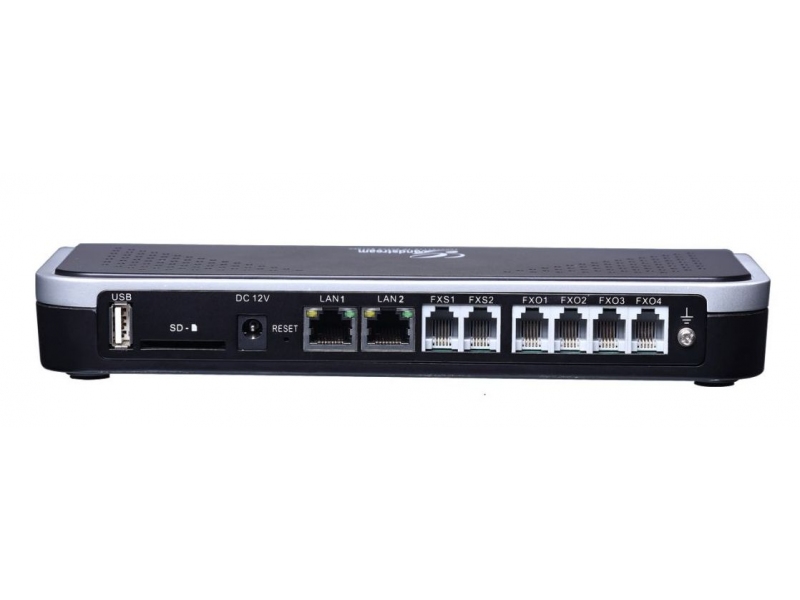

UCM6104:
  • 4-Port FXO (RJ11);
  • 2-Port FXS (RJ45);
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot

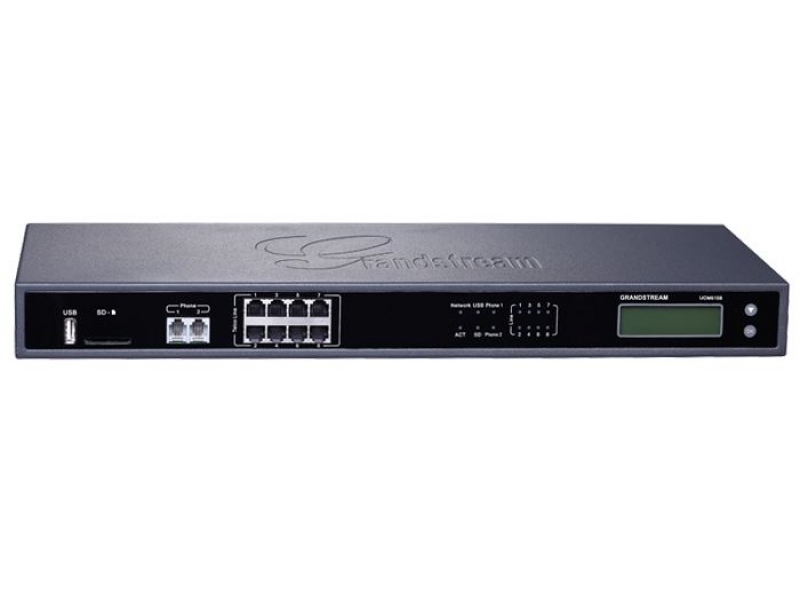

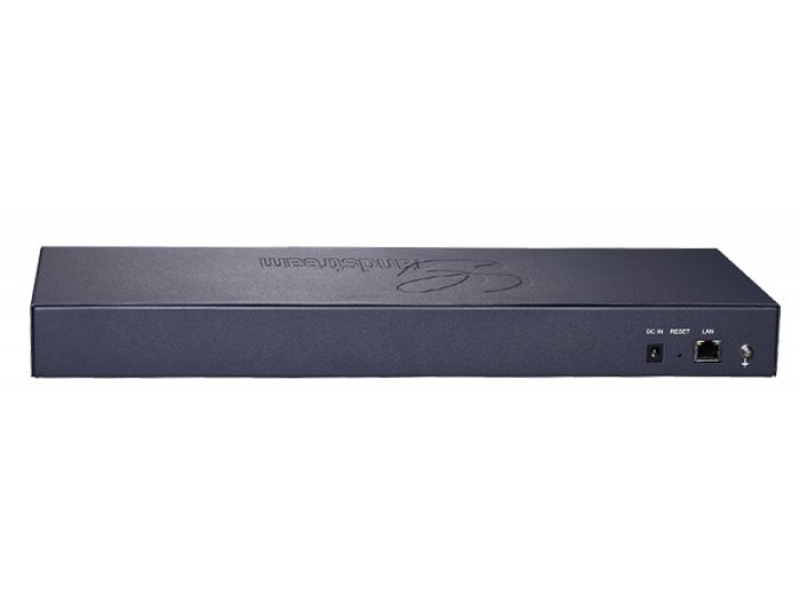

UCM6108:
  • 8-Port FXO (RJ11);
  • 2-Port FXS (RJ45);
  • 1-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot

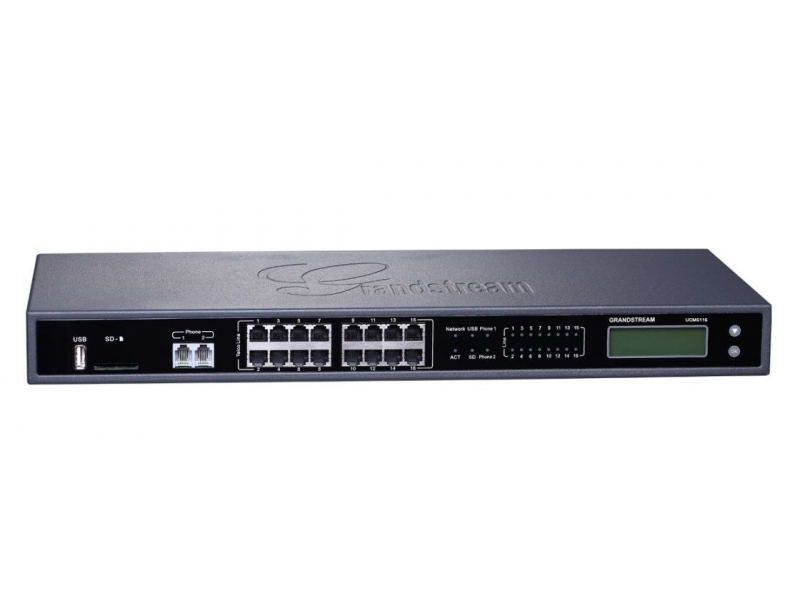

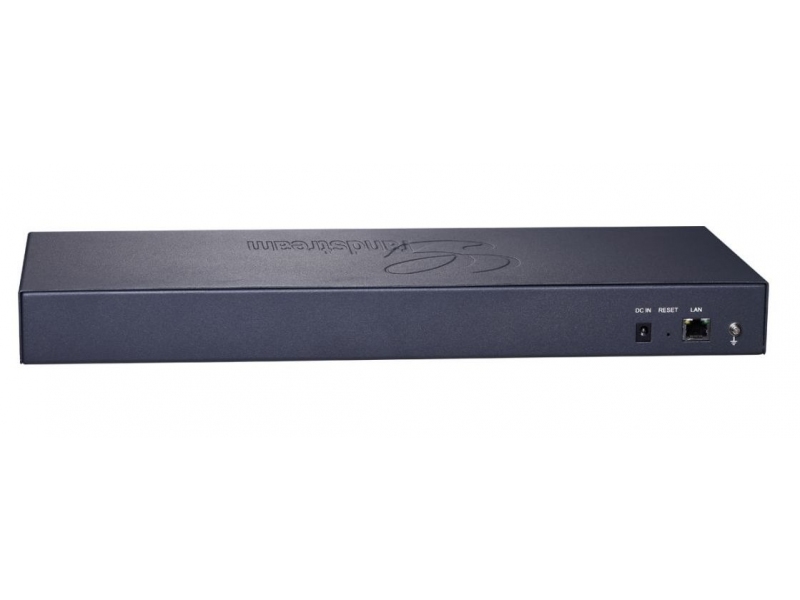

UCM6116:
  • 16-Port FXO (RJ11);
  • 2-Port FXS (RJ45);
  • 1-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot
Supported protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE,  SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP.
Supported codecs
Voice codecs: G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38.
Video Codecs: H.264, H.263, H263+.
Maximum subscribers
Registered subscribers:
UCM6102: 500

UCM6104:

 500
UCM6108 / UCM6116: 500
Max concurrent calls:
UCM6102: 30
UCM6104: 45
UCM6108 / UCM6116: 60

Management

Web-management
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC / 1.5A
DC PSU:
Type: PoE (802.3af)
Rated voltage range: 48 VDC
Maximum power consumption
UCM6202 / UCM6204: 9.57 W
UCM6208 / UCM6216: 10.31 W
Dimensions (HxWxD)
UCM6102 / UCM6104:

34.5 x 226 x 155 mm

(1.33 x 8.89 x 6.10 in)
UCM6108 / UCM6116:

44 (1U) x 440 x 185 mm

(1.73 (1U) x 17.32 x 7.28 in)
Maximum Weight
UCM6102 / UCM6104:

0.51 kg (1.12 lb)
UCM6108:

2.23 kg (4.91 lb)
UCM6116:

2.27 kg (5.00 lb)
