Grandstream UCM6200 series IP PBX

Download UCM6200 Datasheet (eng)

Available to quote:

UCM 6202; UCM 6204; UCM 6208





Request a Quote
SPECIFICATIONS
Interfaces

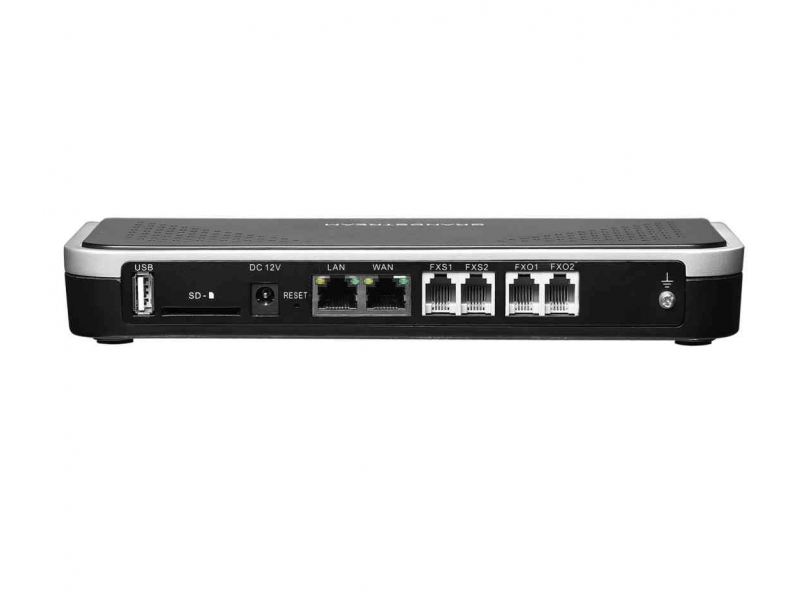

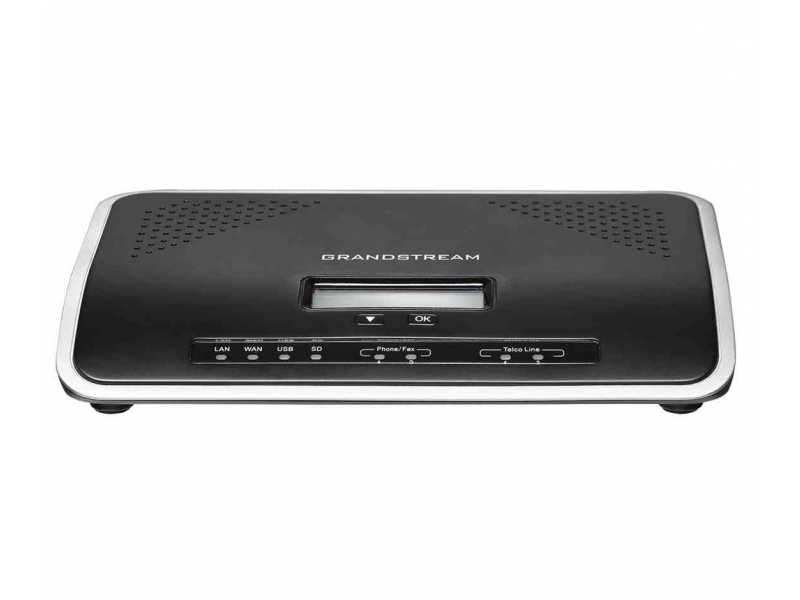

UCM6202:
  • 2-Port FXS (RJ11);
  • 2-Port FXO (RJ11);
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot
UCM6204:
  • 2-Port FXS (RJ11);
  • 2-Port FXO (RJ11);
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot

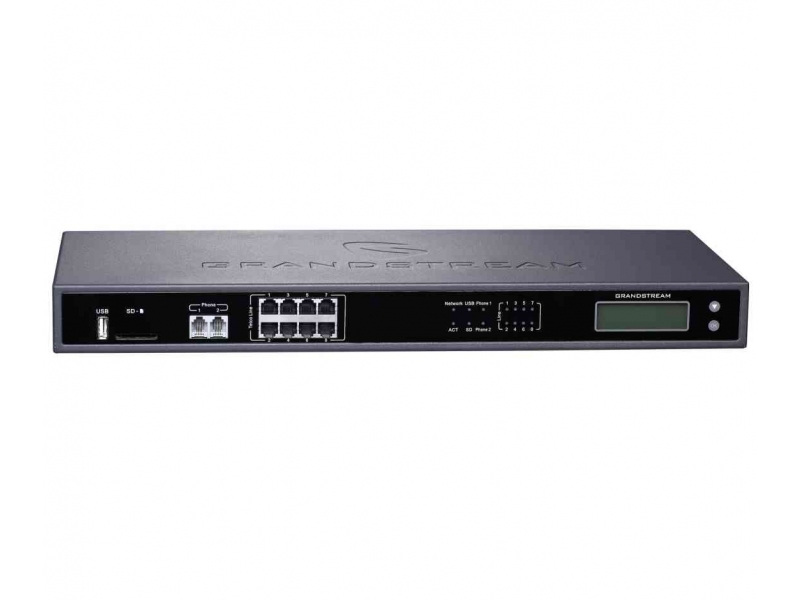

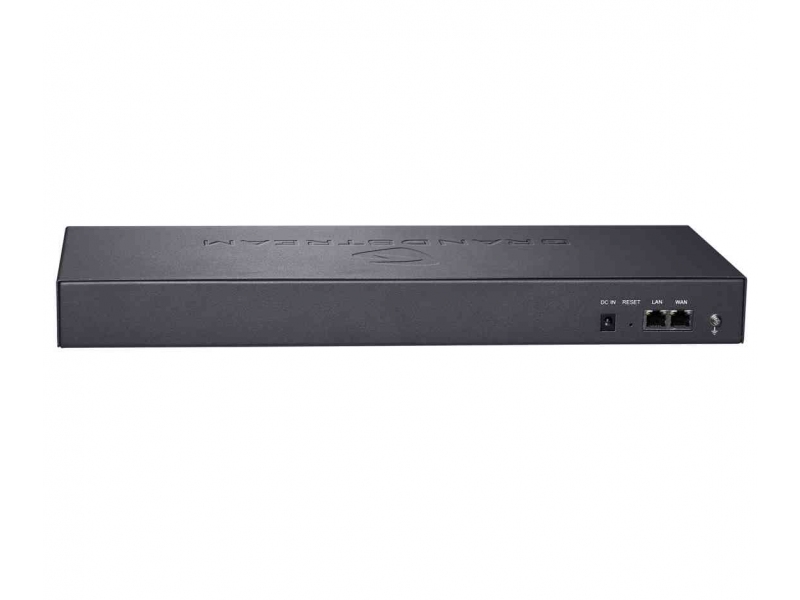

UCM6208:
  • 2-Port FXS (RJ11);
  • 8-Port FXO (RJ11);
  • 2-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port USB;
  • 1 SD card slot
Supported protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE,  SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP.
Supported codecs
Voice codecs: G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38.
Video codecs: H.264, H.263, H263+.
Maximum subscribers
Registered subscribers:

UCM6202 / UCM6204:

 500
UCM6208: 800
Max concurrent calls:
UCM6202: 30

UCM6204:

 45
UCM6208: 100

Management

Web-management
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC / 1.5A
DC PSU:
Type: PoE (802.3af)
Rated voltage range: 48 VDC
Maximum power consumption
UCM6202: 6.53 W
UCM6204: 6.78 W
UCM6208: 6.29 W
Dimensions (HxWxD)
UCM6202 / UCM6204:

34.5 x 226 x 155 mm

(1.33 x 8.89 x 6.10 in)
UCM6208:

44 (1U) x 440 x 185 mm

(1.73 (1U) x 17.32 x 7.28 in)
Maximum Weight
UCM6202 / UCM6204:

0.51 kg (1.12 lb)
UCM6208:

2.23 kg (4.40 lb)
