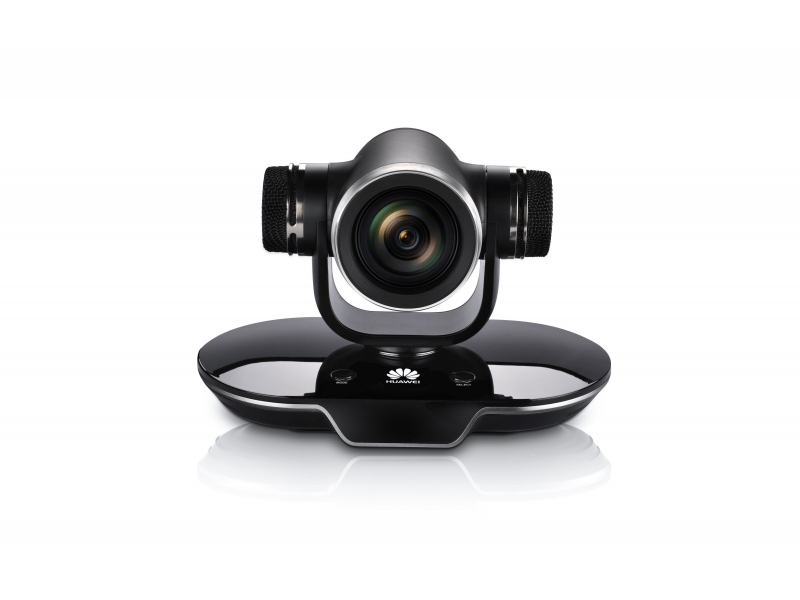

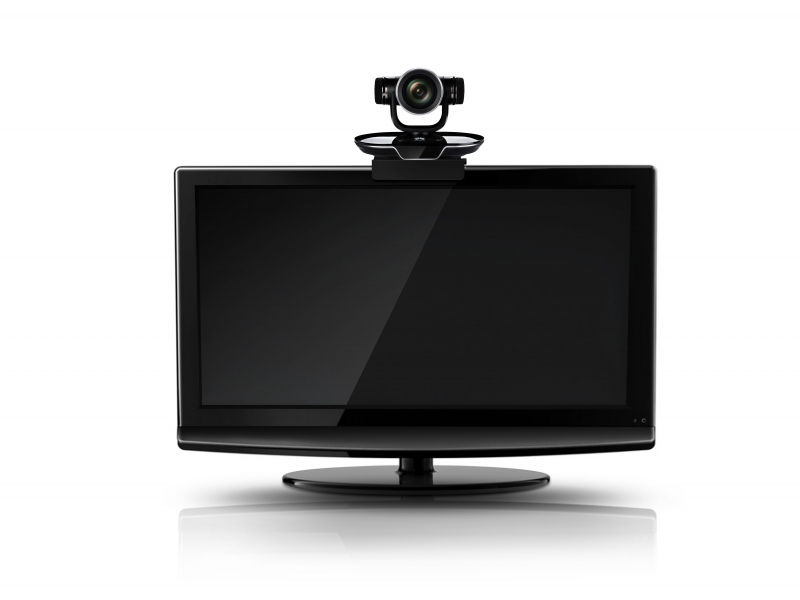

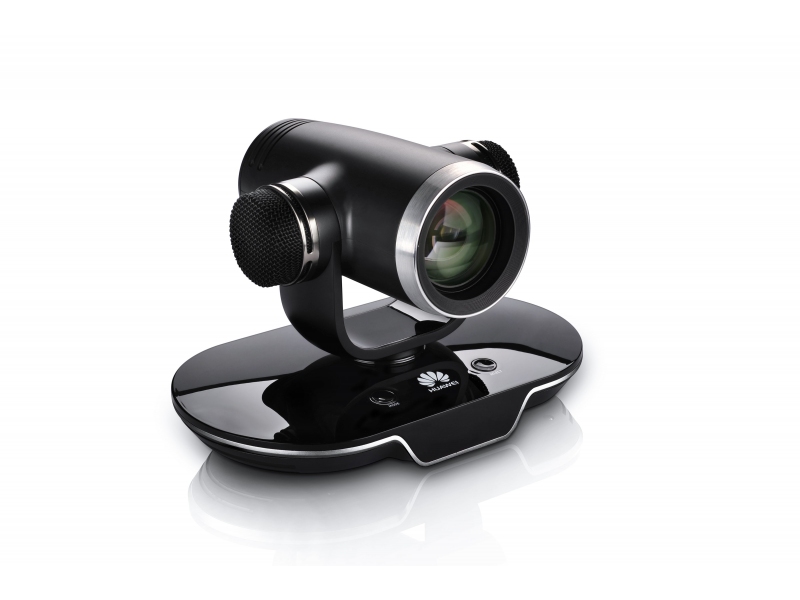

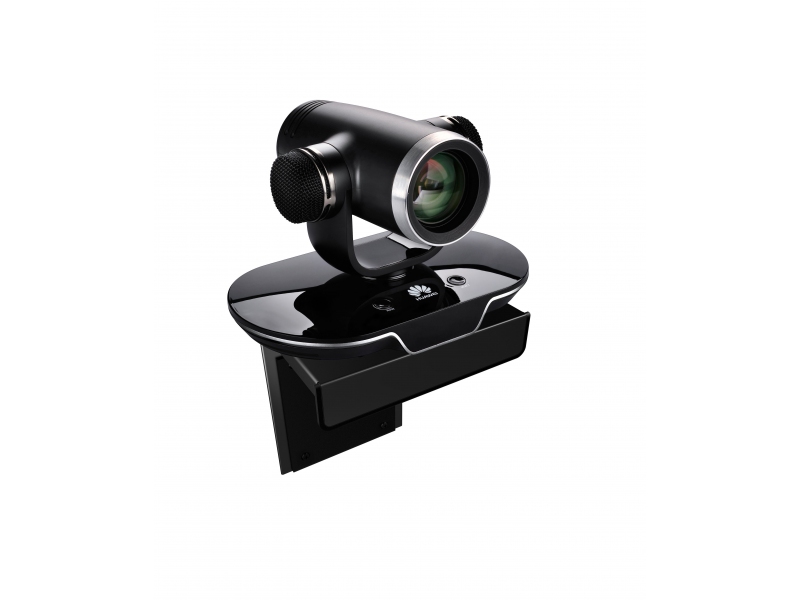

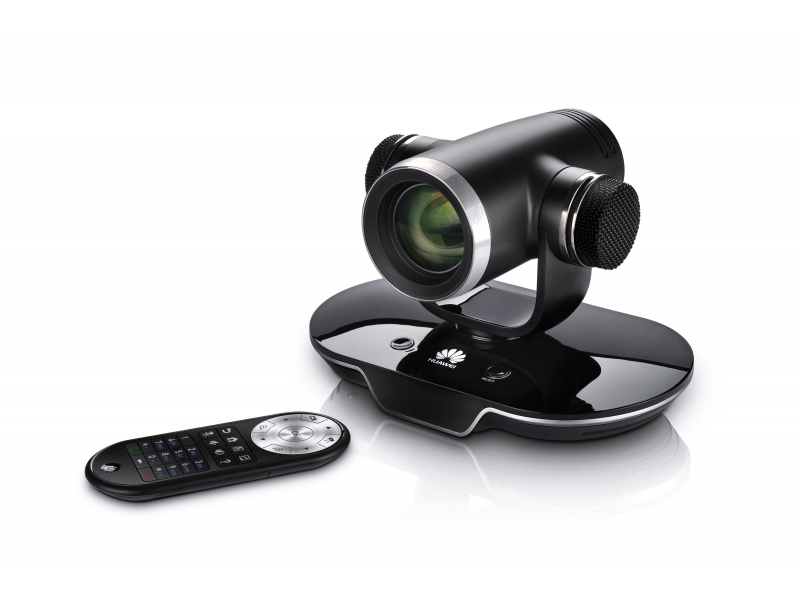

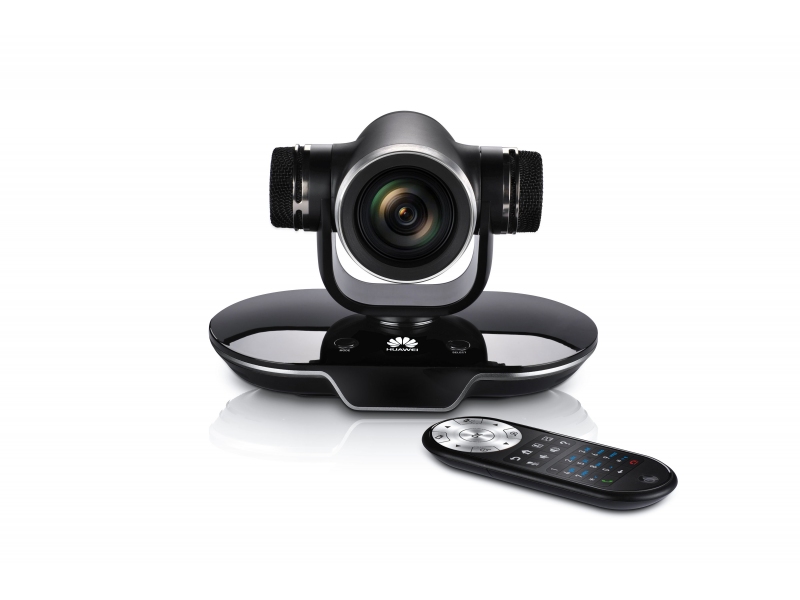

Huawei TE30 HD Endpoint

Download TE30 Datasheet (eng)

Available to quote:

TE30

Request a Quote
SPECIFICATIONS

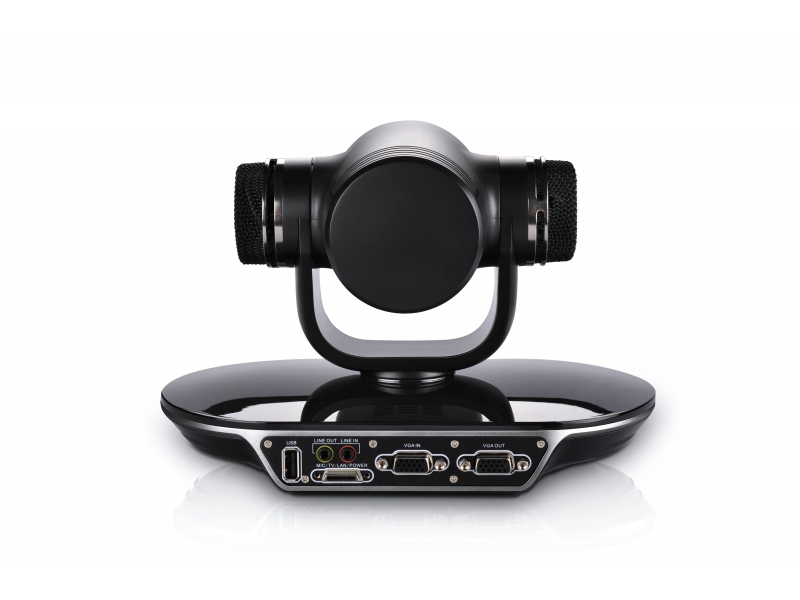

Interfaces
Video interfaces:
  • 1-Port VGA (IN);
  • 1-Port VGA/YPbPr (OUT);
  • 1-Port HDMI (OUT)
Audio interfaces:
  • 1-Port 3.5mm line-in (IN);
  • 1-Port HD-AI (stereo, connect to voicepanel);
  • 1-Port 3.5mm line-out  (OUT);
  • 1-Port HDMI
Network interfaces:
  • 1-Port 10/100MbE (RJ45)
  • Internal Wi-Fi module
Common interfaces:
  • 1-Port USB 2.0
Video Output

1080p 30; 720p 50/60; 720p 25/30; 4SIF / 4CIF; SIF / CIF / QSIF / QCIF / SQSIF / SQCIF
Supported protocols

TCP/IP; FTP; FTPS; DHCP; SNMP; Telnet; SSH; HTTP; HTTPS with SSL/TLS;  PPPoE; RTP; RTCP; SNTP; ARP; 802.1X; 802.1P; 802.1Q, ITU-T H.323; IETF SIP; H.221; H.225; H.230; H.231; H.235; H.241; H.242; H.243; H.245; H.281; H.350; H.460; T.140; DTMF
Supported codecs
Voice codecs: G.711; G.722; G.728; G.722.1; G.722.1C; AAC-LD; HWA-LD; G.719; G729; G.729A
Video codecs: H.263; H.263+; H.264 BP; H.264 HP; H.264 SVC; RTV
Lens Specifications
Sensor

2MP 1/3" CMOS
Zoom

12x optical
Maximum Field of View
Horizontal: 72°

Pan / Tilt
Pan range: ±100º
Tilt range: ±30º
Environmental Conditions
Relative Humidity

0 to 95% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
Output: 12 VDC
DC PSU: Not supported
Maximum power consumption

up to 60 W
Dimensions (HxWxD)

157 x 235 х 167 mm

(6.18 x 9.25 x 6.57 in)
Maximum Weight

2.1 kg (4.63 lb)
