| Interfaces | |
|

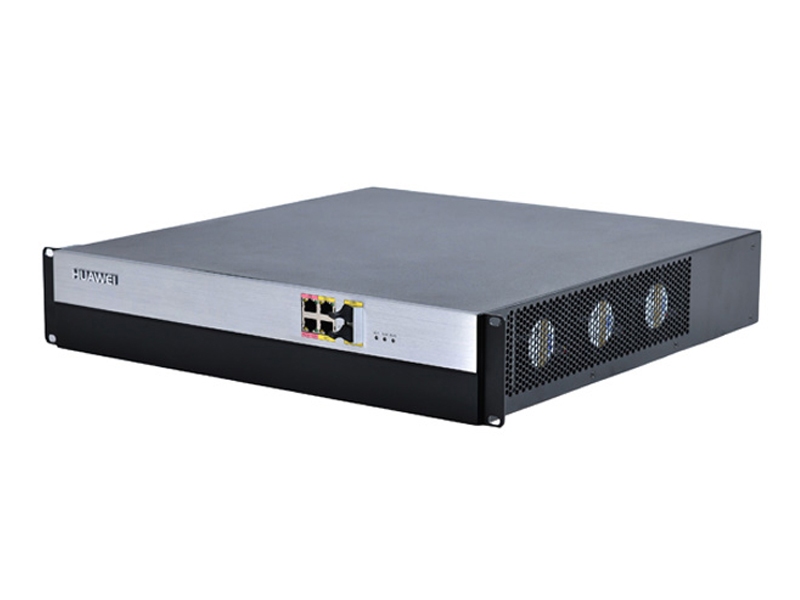

| VP9630: |
- 1-Port 10/100MbE (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45);
- 2 AC PSU slots
|

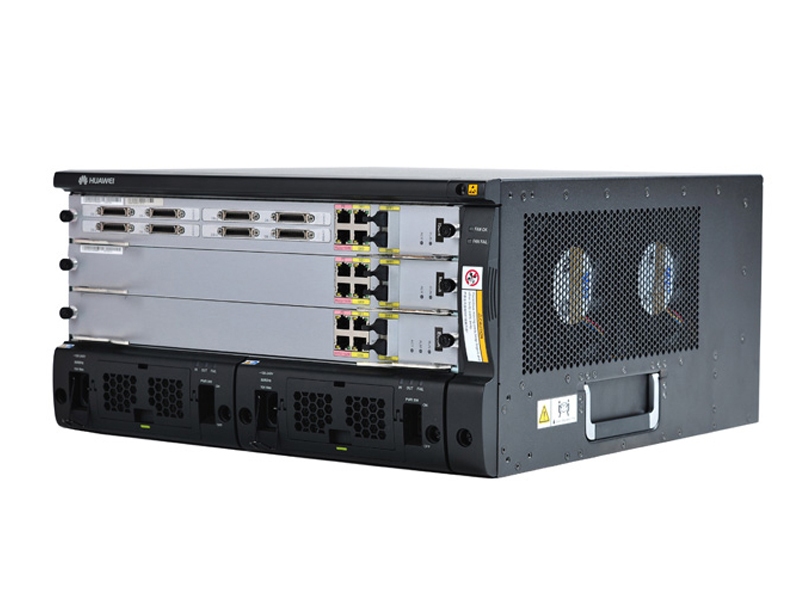

| VP9650: |
- 2 Services Cards slots;
- 1 Control Cards slot;
- 2 AC/DC PSU slots
|

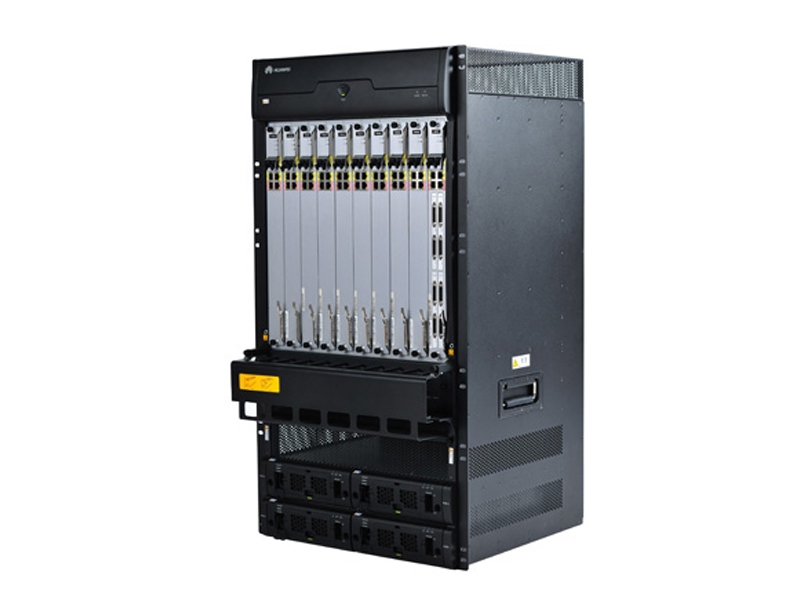

| VP9660: |
- 8 Services Cards slots;
- 2 Control Cards slots;
- 4 AC/DC PSU slots
|
|
| Supported protocols | |
| IPv4/Pv6; TCP/IP; FTP/FTPS; RTP; RTCP; HTTP/HTTPS; SNMP; TELNET; SSH; DNS/DDNS; ITU-T H.323; H.320 (for VP9660 and VP9650); IETF SIP; H.221; H.225; H.235; H.242; H.243; H.245; H.281; H.283; H.460; TIP; FECC; RFC2833; DTMF; SRTP; TLS; T.140; NTP |
| Supported codecs | |
|
| Voice codecs: |
AAC-LD; AAC-LC; HWA-LD; G.722.1; G.722.1C; G.711; G.722; G.728; G.729A; G.729AB; G.719; iLBC |
| Video codecs: |
ITU-T H.264; H.264 HP; H.264 SVC; H.263; H.263+; H.263++; H.261; ITU-T H.239; BFCP |
|
| Supported Resolution | |
| QCIF; QVGA; CIF; VGA; 4CIF; SVGA(800x600); XGA(1024x768); SXGA+(1600x1200); 288P(512x288);
360P(640x360); 396P(704x400); 720P,1080P |
| Management | |
| Telnet; SSH; Web-management; SNMP v1/v2/v3 |
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (non-condensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
|
| VP9630: |
1 |
| VP9650: |
2 |
| VP9660: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
|
| VP9650: |
2 |
| VP9660: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| Maximum power consumption | |
|
| VP9630: |
up to 400 W |
|
VP9650:
|
up to 1,100 W |
| VP9660: |
up to 3,000 W |
|
| Dimensions (HxWxD) | |
|
| VP9630: |
86.1 (2U) x 442 х 450 mm
(3.39 (2U) x 17.4 x 17.72 in)
|
| VP9650: |
219.5 (5U) x 436 х 420 mm
(8.64 (5U) x 17.17 x 16.54 in)
|
| VP9660: |
886.2 (20U) x 436 х 420 mm
(34.89 (20U) x 17.16 x 16.54 in)
|
|
| Maximum Weight | |
|
| VP9630: |
20 kg (44 lb) |
|
VP9650:
|
40 kg (88.18 lb) |
| VP9660: |
100 kg (220.46 lb) |
|
| Compatible Expansion Cards | |
|
| Model Number |
Description |
| Control Cards: |
| Supported by: |
VP9650 |
| ECCA |
- 1-Port 10/100MbE (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|
| Supported by: |
VP9660 |
| ECCB |
- 1-Port 10/100MbE (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|
|
|
| Service Cards: |
| Supported by: |
VP9650, VP9660 |
| ISDN board |
- 8-Port E1 (64 PRI);
- 1-Port 10/100MbE (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|
| Media board |
Hardware resources: 24 ports at 1080p30 + 24 audio ports |
| RSE-M |
4 way dual streams recordings + 4 way 720p live streams + 500 way web viewers |
|
