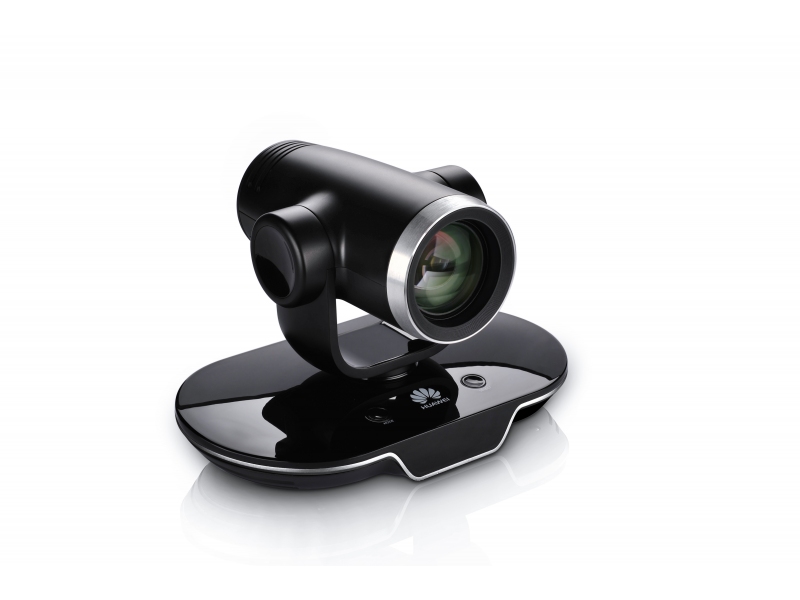

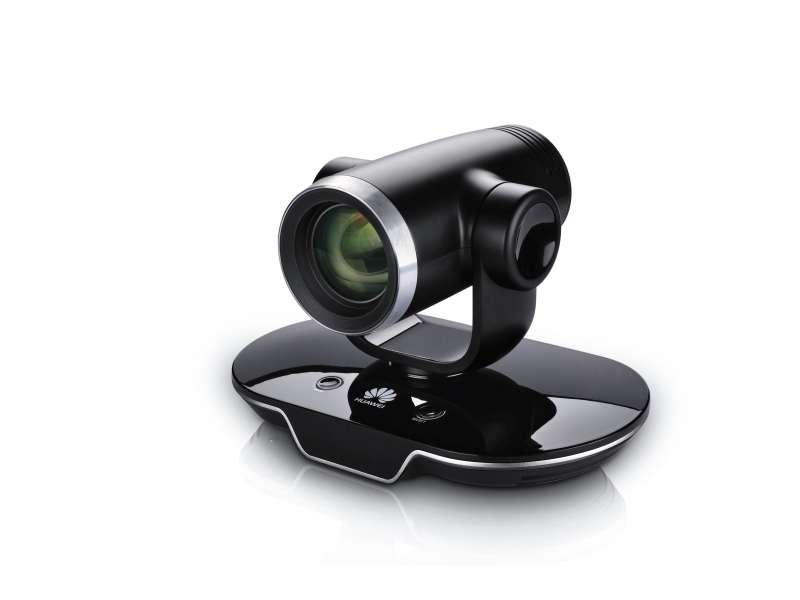

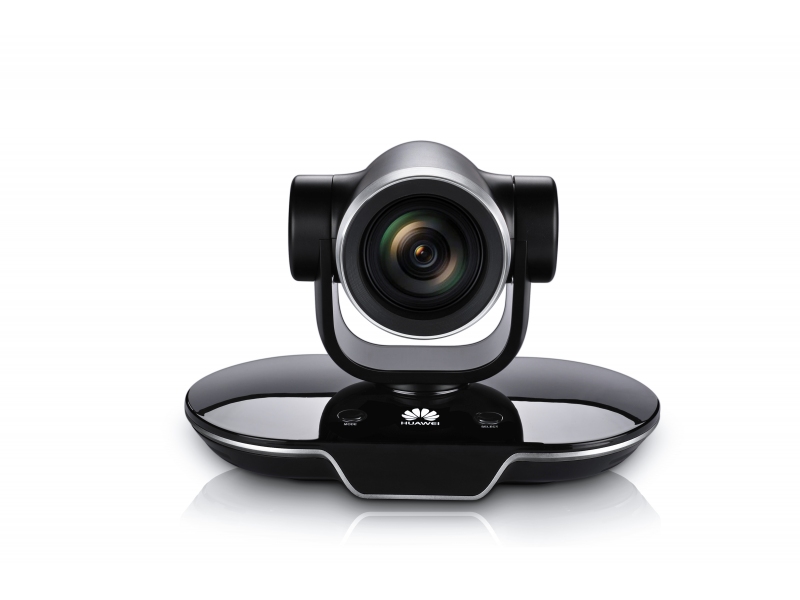

Huawei VPC600 Series HD Camera

Download VPC600 series Datasheet (eng)

Available to quote:

VPC600

VPC620-4X

VPC620-12X

Request a Quote
SPECIFICATIONS
Interfaces

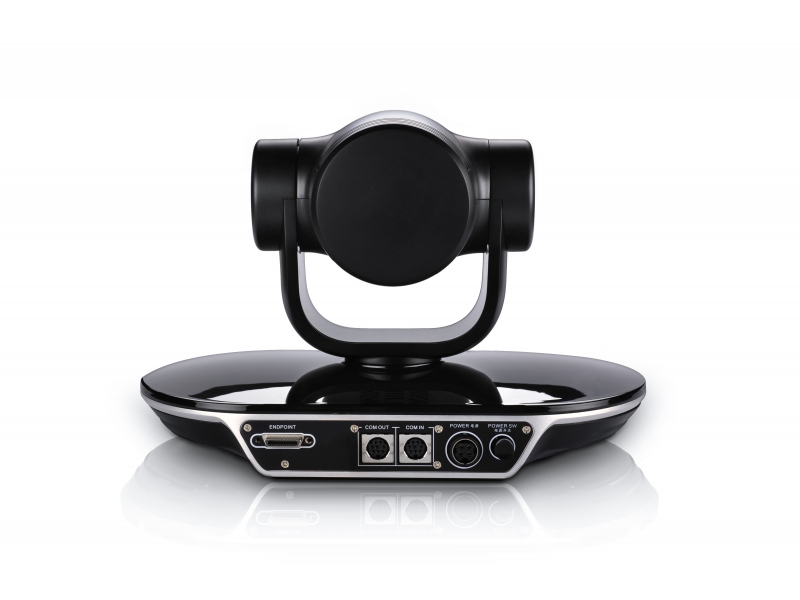

VPC620:
  • 1-Port HD-VI (DVI 1.0 & YPbPr);
  • 1-Port RS-232C
VPC620-4X:
  • 1-Port HD-VI (DVI 1.0 & YPbPr);
  • 1-Port 3G-SDI (SMPTE-424M);
  • 1-Port RS-232C;

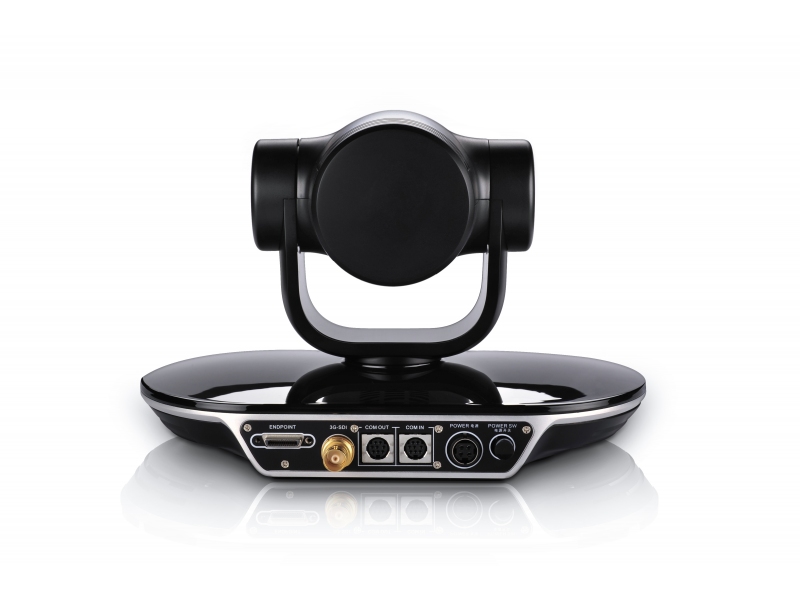

VPC620-12X:
  • 1-Port HD-VI (DVI 1.0 & YPbPr);
  • 1-Port 3G-SDI (SMPTE-424M);
  • 1-Port RS-232C;
Video Output

1080p 50/60; 1080i 50/60; 1080p 25/30; 720p 50/60
Lens Specifications
Sensor

2.38MP 1/2.8" CMOS
Zoom
VPC600: 12x optical and 12x digital
VPC620-4X: 4x optical and 2.5x digital
VPC620-12X: 12x optical and 12x digital
Focal Length
VPC600: f = 3.9 to 46.8mm
VPC620-4X: f = 3.9 to 15.6 mm
VPC620-12X f = 3.9 to 46.8mm
Lens Aperture

F1.8
Maximum Field of View
Horizontal: 72°
Vertical: 44.5°
Pan / Tilt
Pan range: ±100º
Tilt range: ±30º
Minimum pan range: 2º/s
Maximum pan range: 80º/s
Minimum Tilt range: 2º/s
Maximum Tilt range: 25º/s
Environmental Conditions
Relative Humidity

0 to 95% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
Output: 12 VDC
DC PSU: Not supported
Maximum power consumption

up to 20 W
Dimensions (HxWxD)

157 x 234 х 163 mm

(6.18 x 9.21 x 6.42 in)
Maximum Weight

1.7 kg (3.75 lb)
