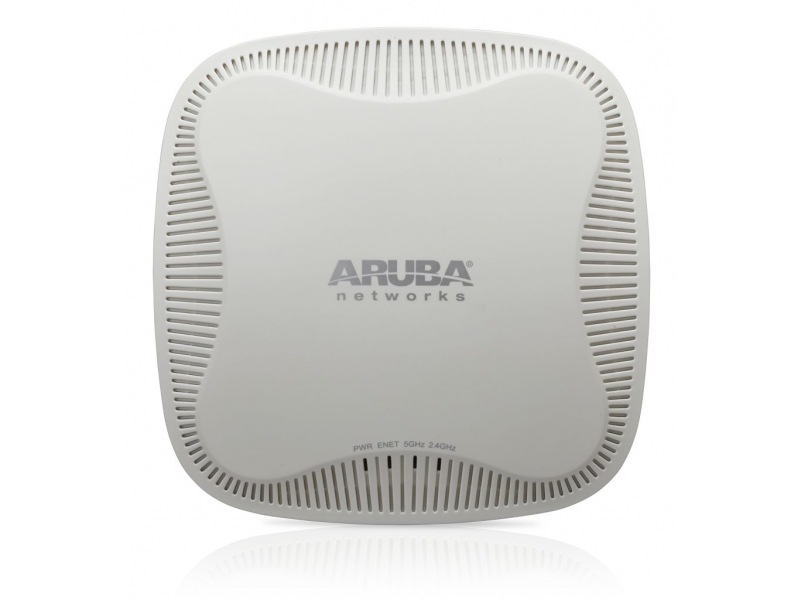

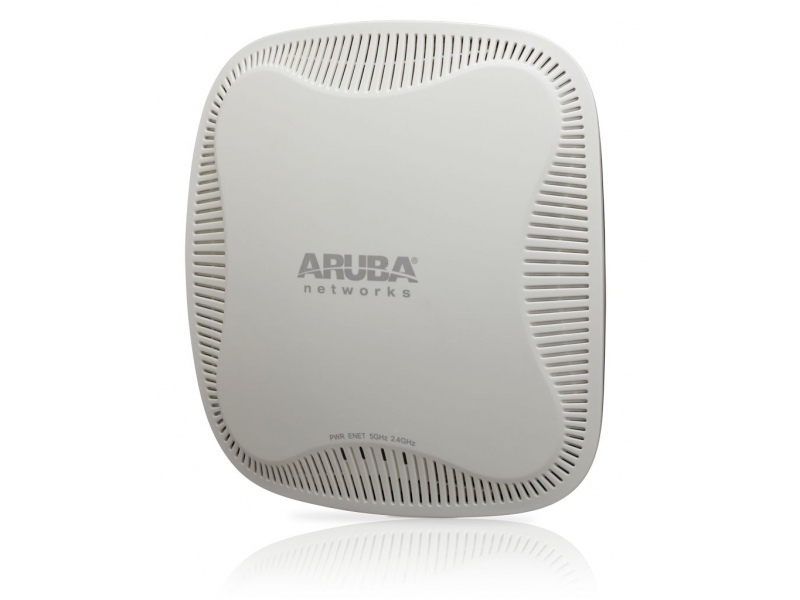

ARUBA 103 series Access Points

Download 103 series Datasheet (eng)

Available to quote:

IAP-103; AP-103

Request a Quote
SPECIFICATIONS
Interfaces
IAP-103:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port console (proprietary; optional adapter cable available)
AP-103:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port console (proprietary; optional adapter cable available)
Access Point type

Indoor
Antenna type

Internal
Mounting

Wall / Ceiling mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 2×2 MIMO with up to two spatial streams
Management
AP-103: Aruba Mobility Controller
IAP-103: Instant AP
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: External
Quantity: 1
 Rated voltage range: - 48 VDC, PoE (802.3af)
Power consumption

up to 8 W
Dimensions (HxWxD)

41.5 x 150 х 150 mm

(1.6 x 5.9 x 5.9 in)
Maximum Weight

0.3 kg (0.6 lb)
