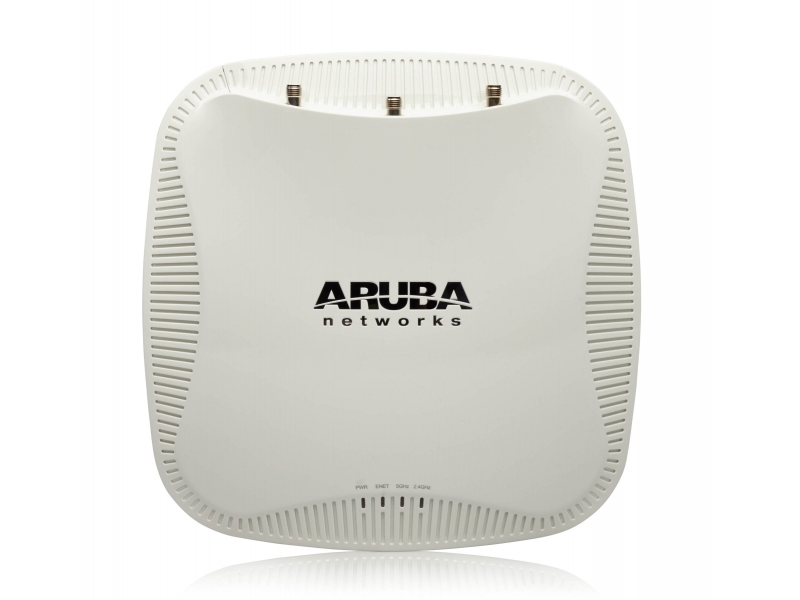

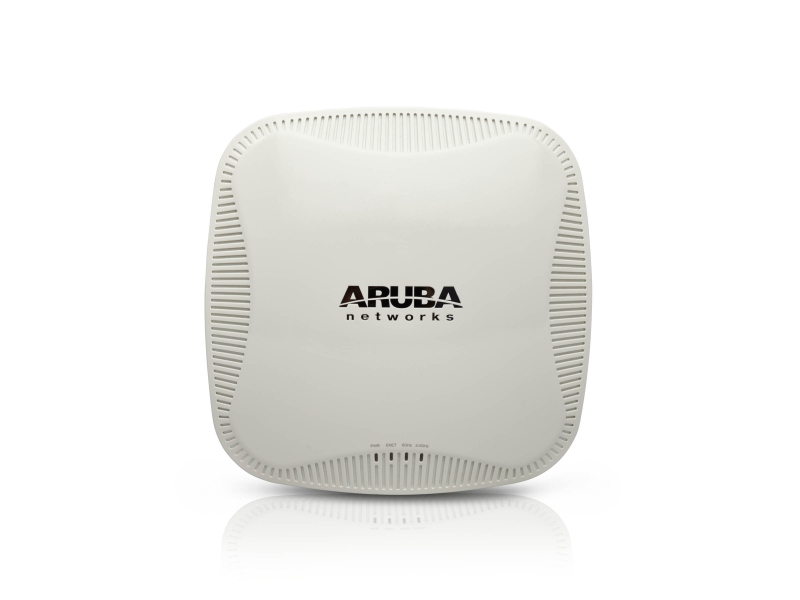

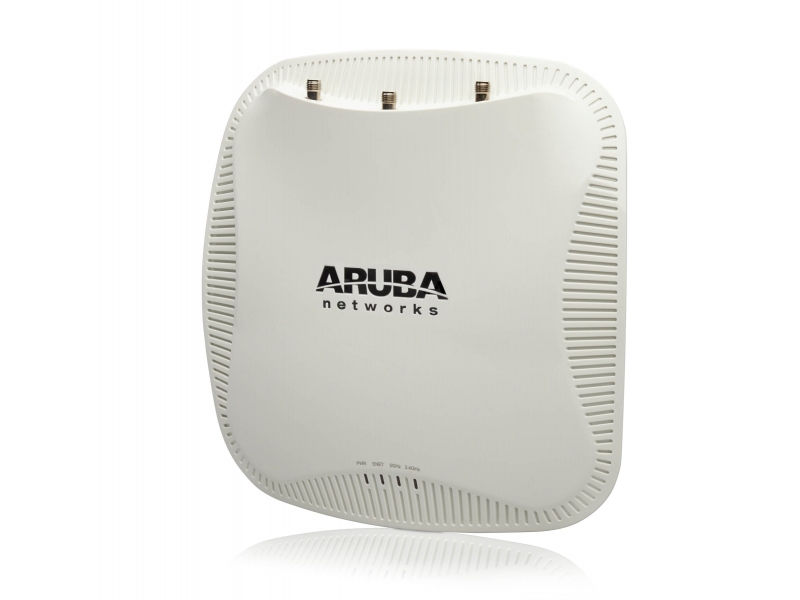

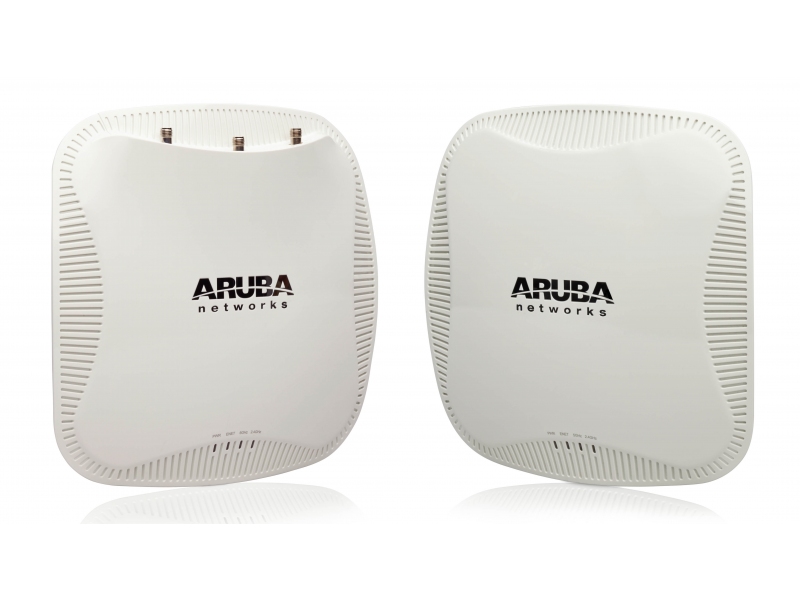

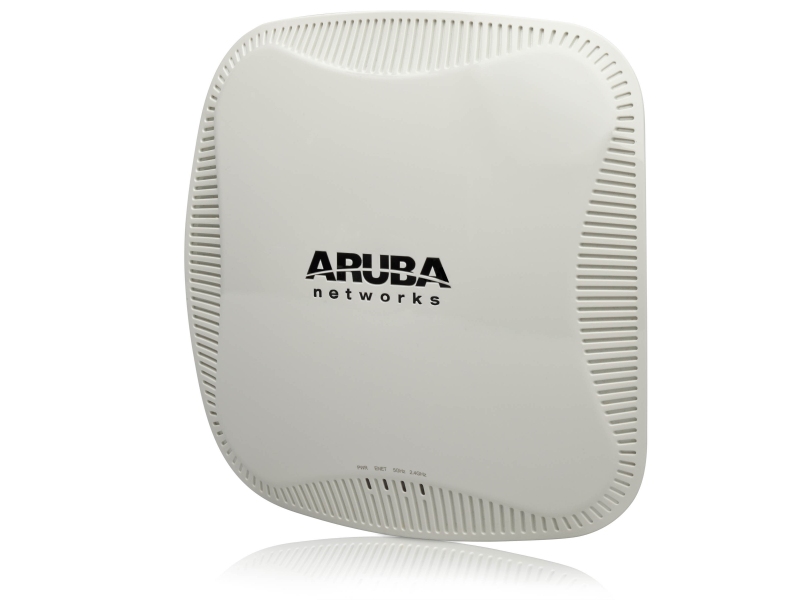

ARUBA 110 series Access Points

Download 110 series Datasheet (eng)

End-of-Sale

EOLA:

http://www.arubanetworks.com/assets/support/EOS_Notice_110_Series.pdf

Request a Quote
SPECIFICATIONS
Interfaces
IAP-114:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AP-114:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
IAP-115:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AP-115:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
Access Point type

Indoor
Antenna type
IAP-114 / AP-114: external
IAP-115 / AP-115: internal
Mounting

Wall / Ceiling mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 3×3 MIMO with up to three spatial streams
Management
AP-114 / AP-115: Aruba Mobility Controller
IAP-114 / IAP-115: Instant AP
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: External
Quantity: 1
Rated voltage range: -48 VDC, PoE+ (802.3at)
Power consumption

up to 12 W
Dimensions (HxWxD)

45 x 180 х 180 mm

(1.7 x 7.08 x 7.08 in)
Maximum Weight

0.65 kg (1.43 lb)
