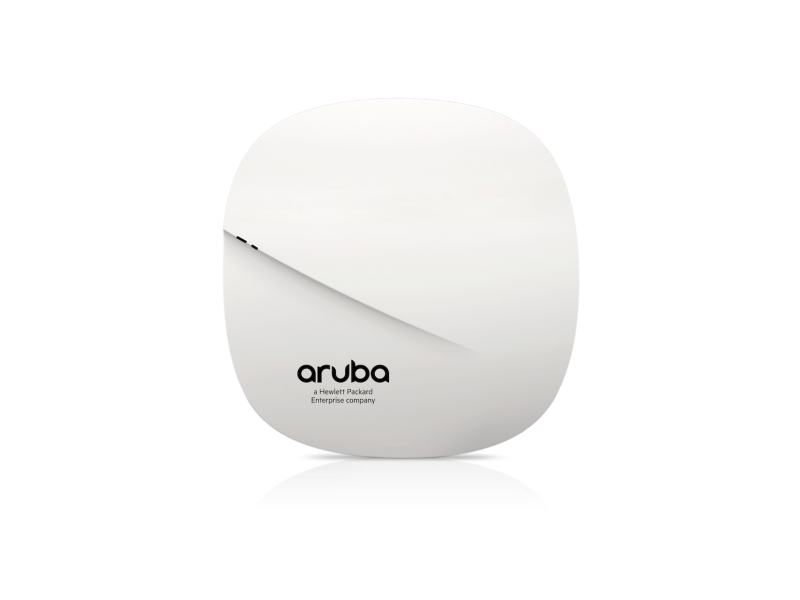

ARUBA 207 series Access Points

Download 207 series Datasheet (eng)

Available to quote:

AP-207; IAP-207

Request a Quote
SPECIFICATIONS
Interfaces
AP-207:
  • 1-Port 10/100/1000MbE (RJ45) PoE;
  • 1-Port console (proprietary)
Access Point type

Indoor
Antenna type

internal
Mounting

Wall / Ceiling mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS);
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac:

802.11n: 2×2 MIMO with up to two spatial streams;
Bluetooth Low Energy (BLE) radio: Up to 3 dBm transmit power (class 2) and -92 dBm receive sensitivity. Integrated antenna
Management
AP-207: Aruba Mobility Controller
IAP-207: Instant AP
Environmental Conditions
Relative Humidity

5 to 93 % (noncondensing)
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: -48 VDC, PoE+ (802.3at)
Power consumption

up to 12.3 W
Dimensions (HxWxD)

40 x 150 х 150 mm

(1.57 x 5.9 x 5.9 in)
Maximum Weight

0.59 kg (1.3 lb)
