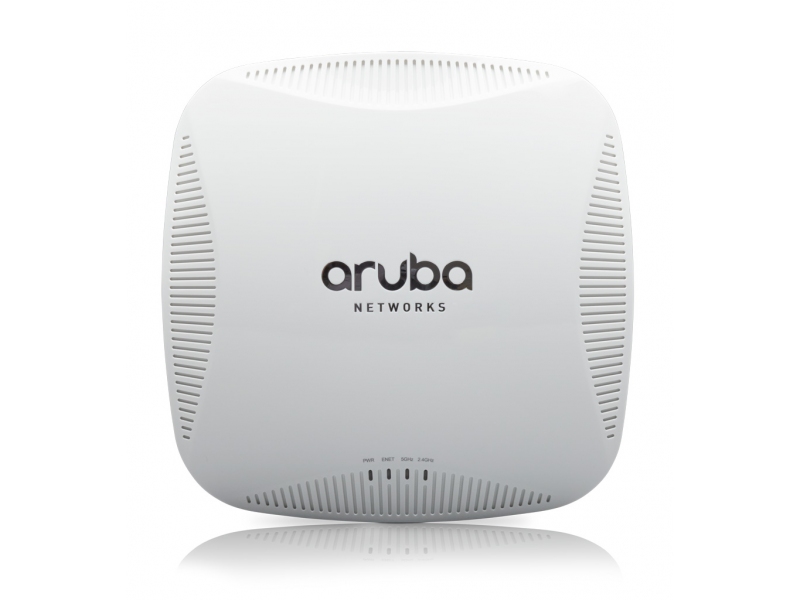

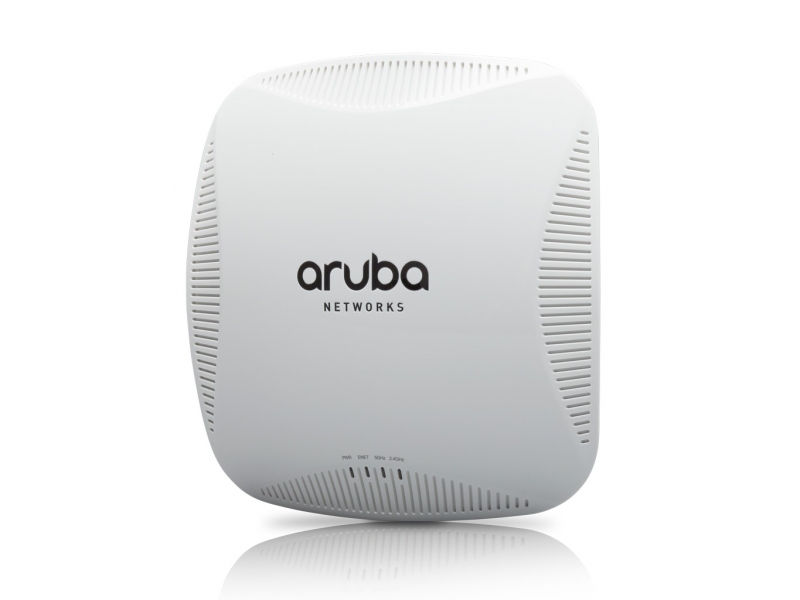

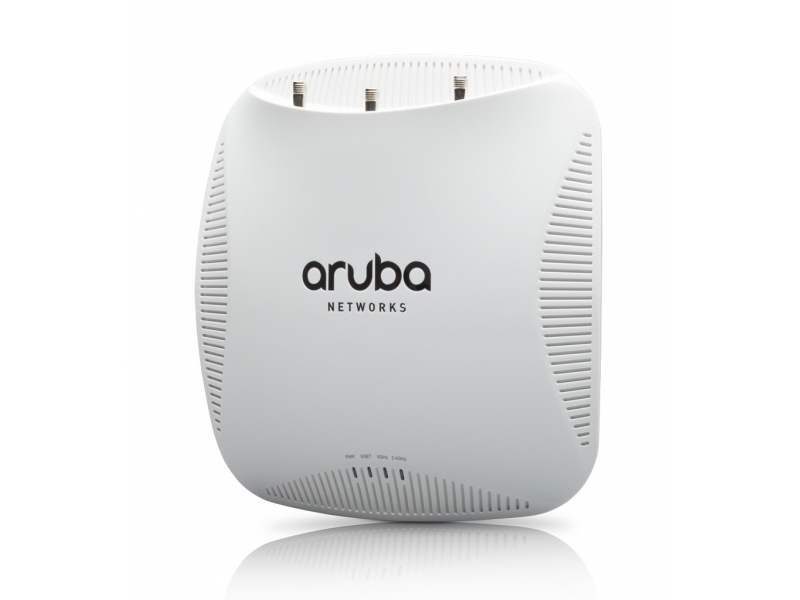

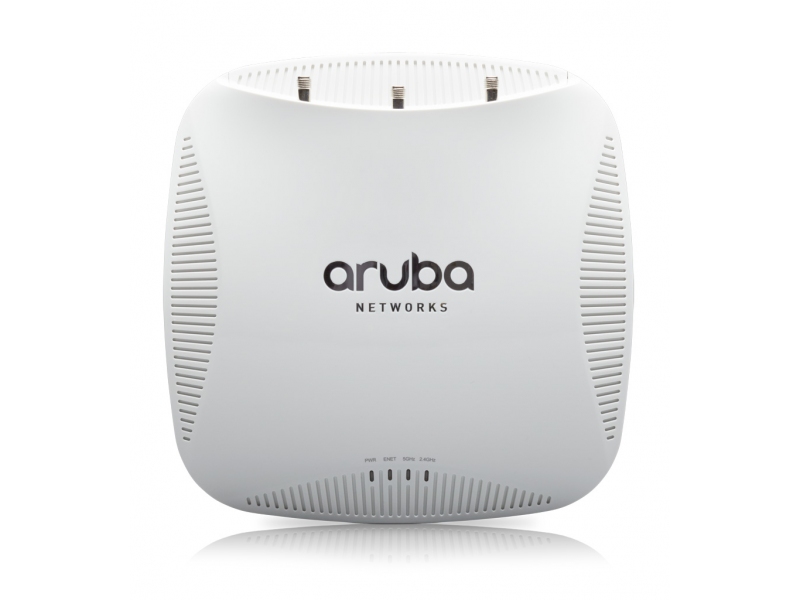

ARUBA 210 series Access Points

Download 210 series Datasheet (eng)

Available to quote:

IAP-214; AP-214

IAP-215; AP-215

Request a Quote
SPECIFICATIONS
Interfaces
IAP-214:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AP-214:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
IAP-215:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-port USB;
  • 1-Port console (RJ45)
AP-215:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
Access Point type

Indoor
Antenna type
IAP-214 / AP-214: external
IAP-215 / AP-215: internal
Mounting

Wall / Ceiling mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac: 3×3 MIMO with up to three spatial streams
Management
AP-214 /  AP-215: Aruba Mobility Controller
IAP-214 /  IAP-215: Instant AP
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Extrenal
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Extrenal
Quantity: 1
 Rated voltage range -48 VDC, PoE+ (802.3at)
Power consumption

13.6 W
Dimensions (HxWxD)

45 x 180 х 180 mm

(1.7 x 7.09 x 7.09 in)
Maximum Weight

0.65 kg (1.43 lb)
