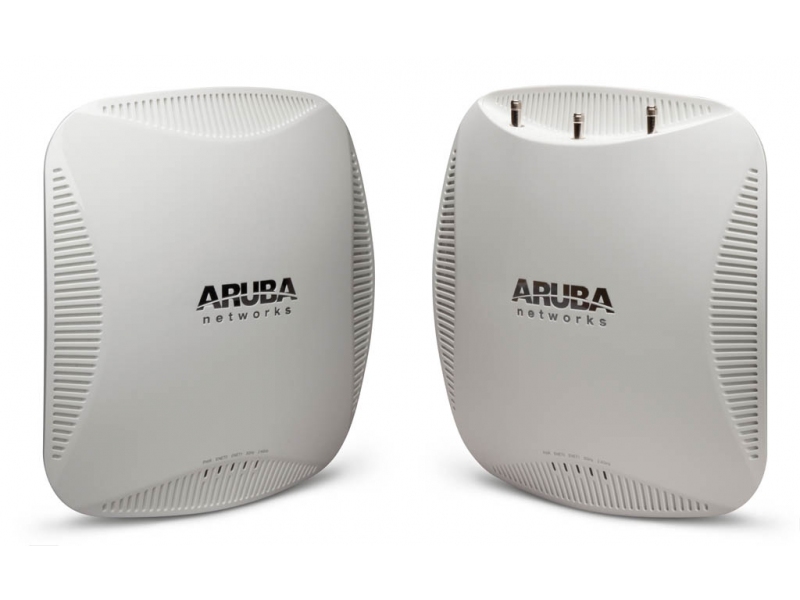

ARUBA 220 series Access Points

Download 220 series Datasheet (eng)

Available to quote:

IAP-224; AP-224

IAP-225; AP-225

Request a Quote
SPECIFICATIONS
Interfaces
IAP-224:
  • 2-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AP-224:
  • 2-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
IAP-225:
  • 2-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AP-225:
  • 2-Port 10/100/1000MbE (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
Access Point type

Indoor
Antenna type

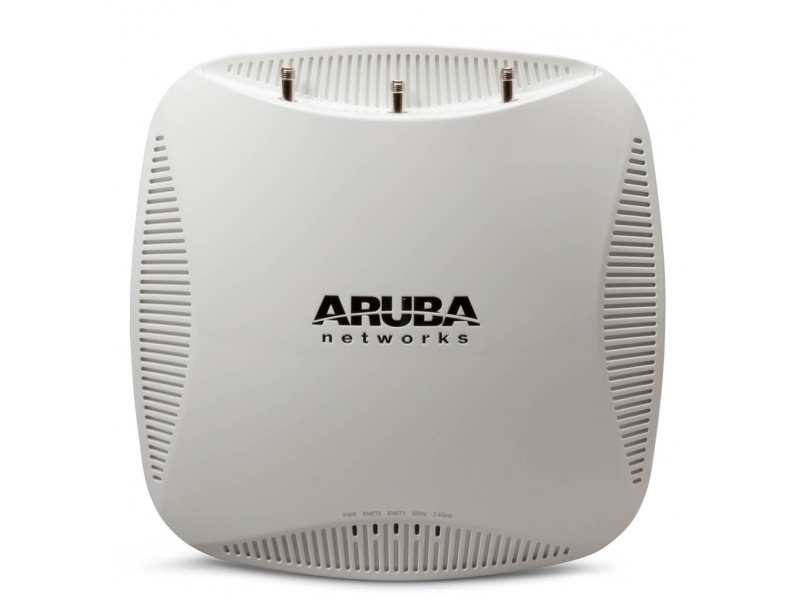

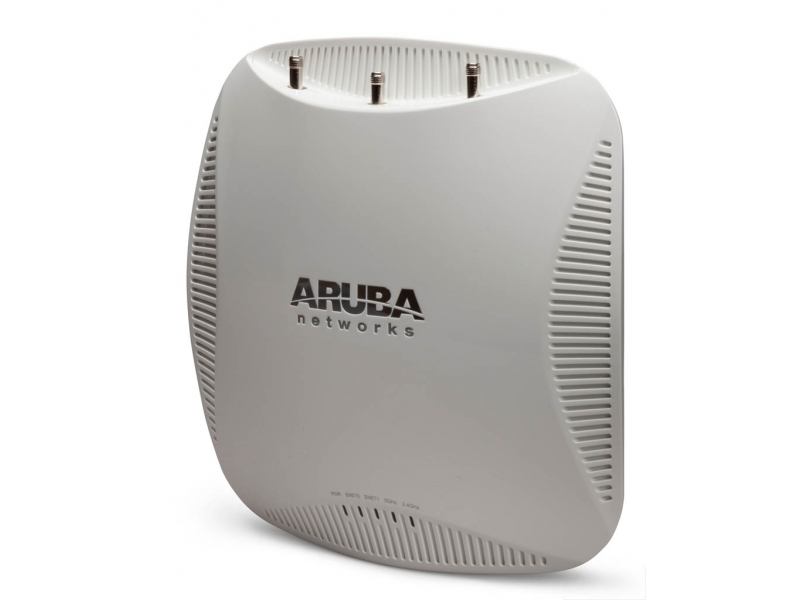

IAP-224 / AP-224: external

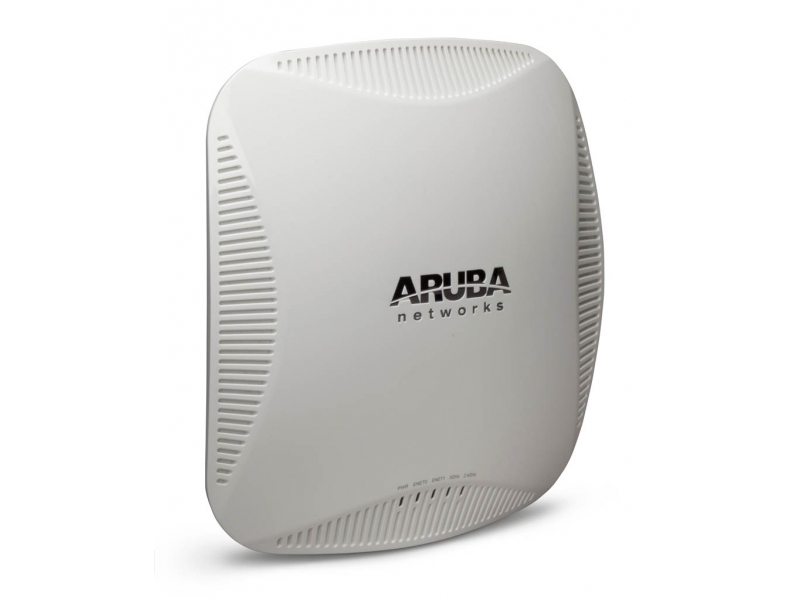

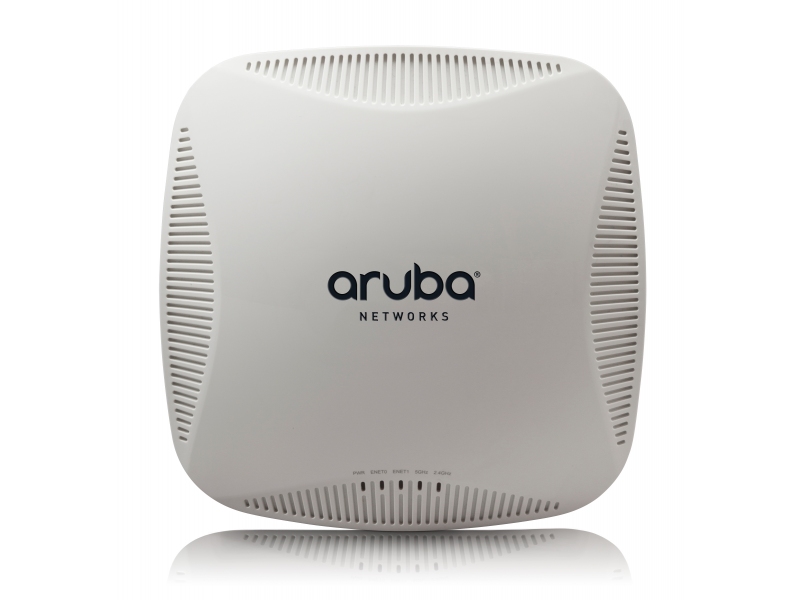

IAP-225 / AP-225: internal
Mounting

Wall / Ceiling mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac: 3×3 MIMO with up to three spatial streams
Management
AP-224 /  AP-225: Aruba Mobility Controller
IAP-224 /  IAP-225: Instant AP
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: External
Quantity: 1
Rated voltage range: -48 VDC, PoE+ (802.3at)
Power consumption

15 W
Dimensions (HxWxD)

54 x 203 х 203 mm

(2.1 x 7.9 x 7.9 in)
Maximum Weight

0.75 kg (1.65 lb)
