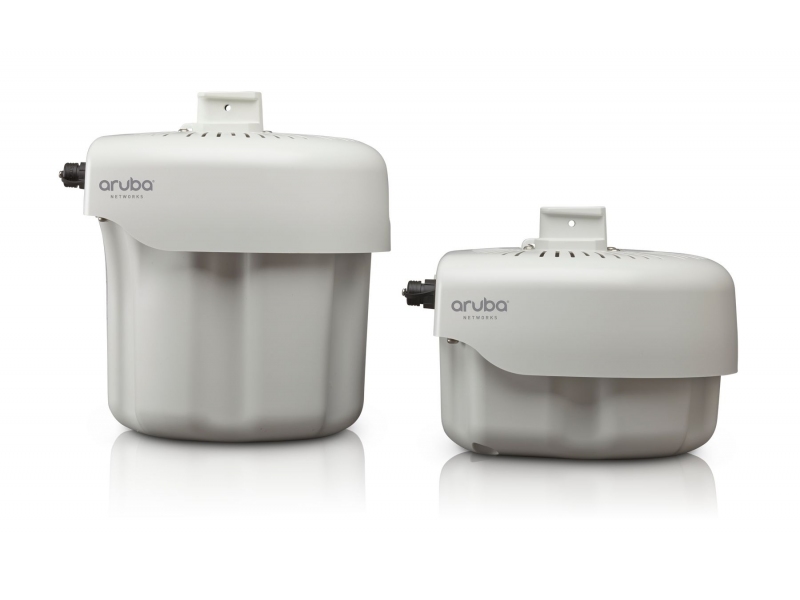

ARUBA 270 series Access Points

Download 270 series Datasheet (eng)

Available to quote:

AP-274; AP-275; AP-277

Request a Quote
SPECIFICATIONS
Interfaces
AP-274 / IAP-274:
  • 1-Port 10/100/1000MbE (RJ45) (WAN) PoE;
  • 1-Port 10/100MbE (RJ45) (LAN);
  • 1-Port console (microUSB)
AP-275 / IAP-275:
  • 1-Port 10/100/1000MbE (RJ45) (WAN) PoE;
  • 1-Port 10/100MbE (RJ45) (LAN);
  • 1-Port console (microUSB)
AP-277 / IAP-277:
  • 1-Port 10/100/1000MbE (RJ45) (WAN) PoE;
  • 1-Port 10/100MbE (RJ45) (LAN);
  • 1-Port console (microUSB)
Access Point type

Outdoor
Antenna type
AP-274: 6 N-type female connectors for external antennas
AP-275: 6 integrated omni-directional antennas for 3x3
MIMO with maximum antenna gain of 5 dBi in 2.4 GHz
and 5 dBi in 5 GHz. Built-in antennas are optimized for
horizontal mounted orientation of AP-275.

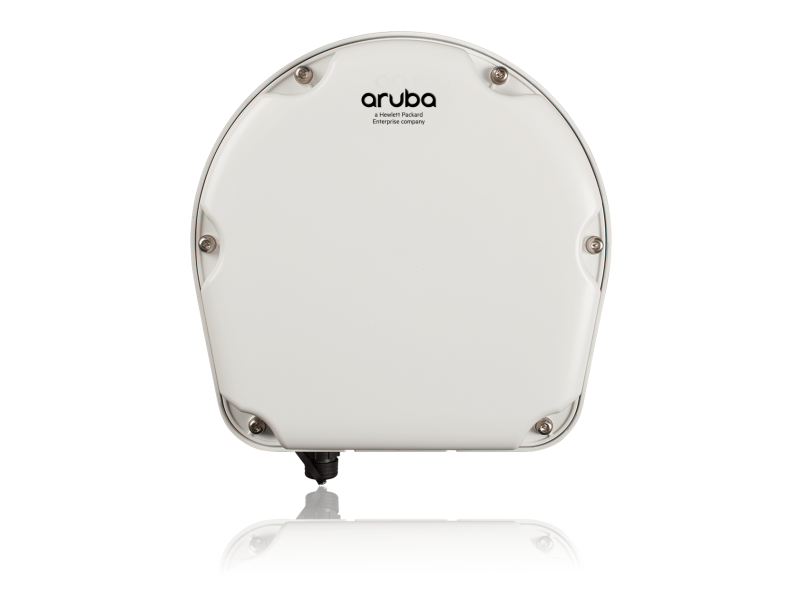

AP-277: 6 integrated multipolarized directional antennas
with 80º H x 80º V beamwidths for 3x3 MIMO with
maximum antenna gain of 6.5 dBi in 2.4 GHz and 5 GHz.
Mounting

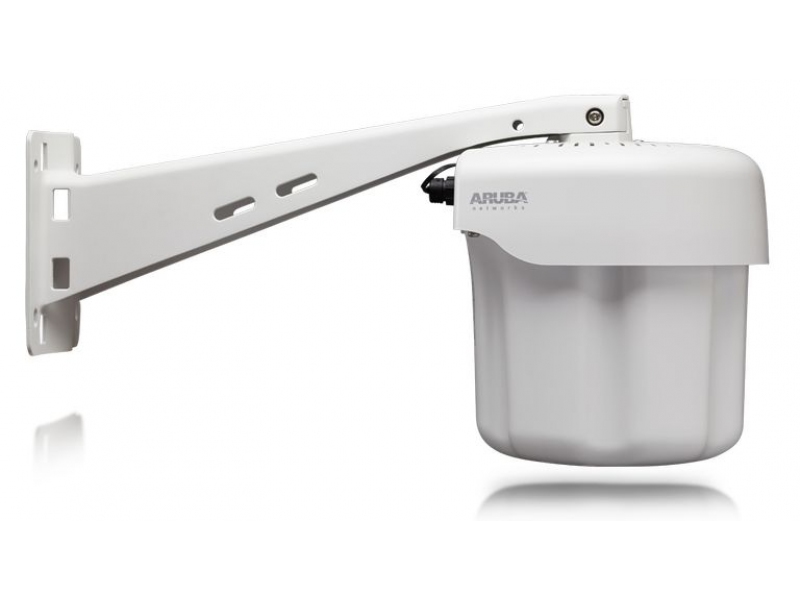

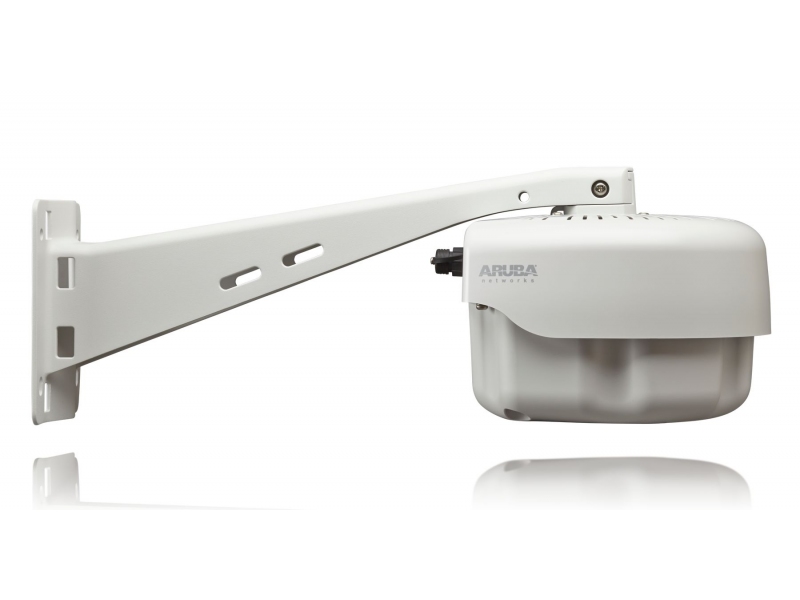

Pole/ Wall mounting
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 3×3 MIMO with up to three spatial streams
Management

Aruba Mobility Controller, Instant AP
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

-40 to +65°C (-40 to 150°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: PoE+ (802.3at)


Power consumption

up to 23 W
Dimensions (HxWxD)
AP-274 (with aesthetic cover):

190 x 230 х 240 mm

(7.5 x 9.0 x 9.4 in)
AP-275:

270 x 230 х 240 mm

(10.6 x 9.0 x 9.4 in)
AP-277:

130 x 230 х 220 mm

(5.1 x 9.0 x 8.7 in)
Maximum Weight
AP-274 (with aesthetic cover): 2.7 kg (6 lb)
AP-275: 2.4 kg (5.3 lb)
AP-277: 2.1 kg (4.6 lb)
