| Interfaces | |
|

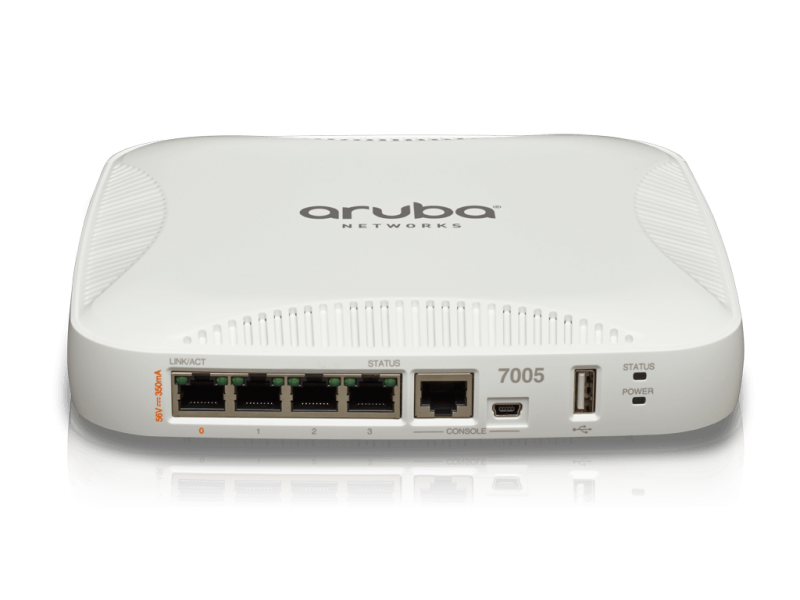

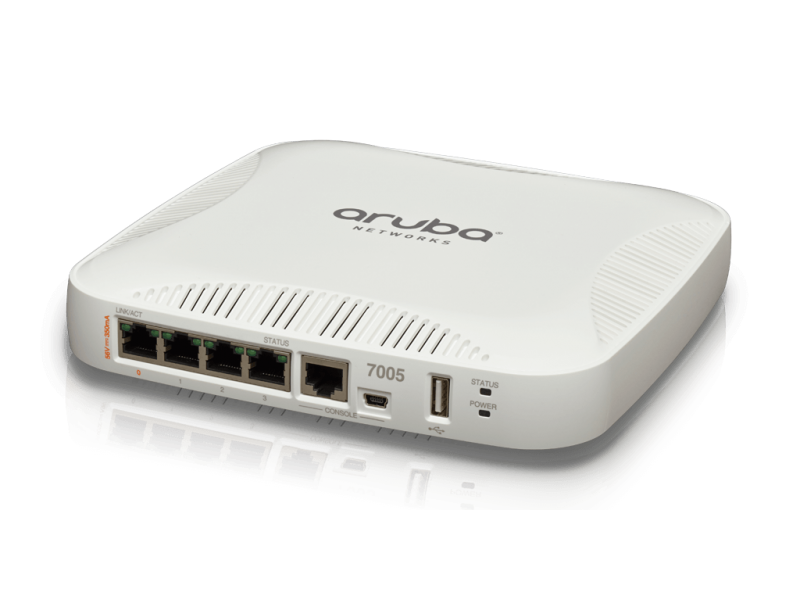

| 7005: |
- 4-Port 10/100/1000MbE (RJ45);
- 1-Port USB;
- 1-Port console (miniUSB/RJ45)
|

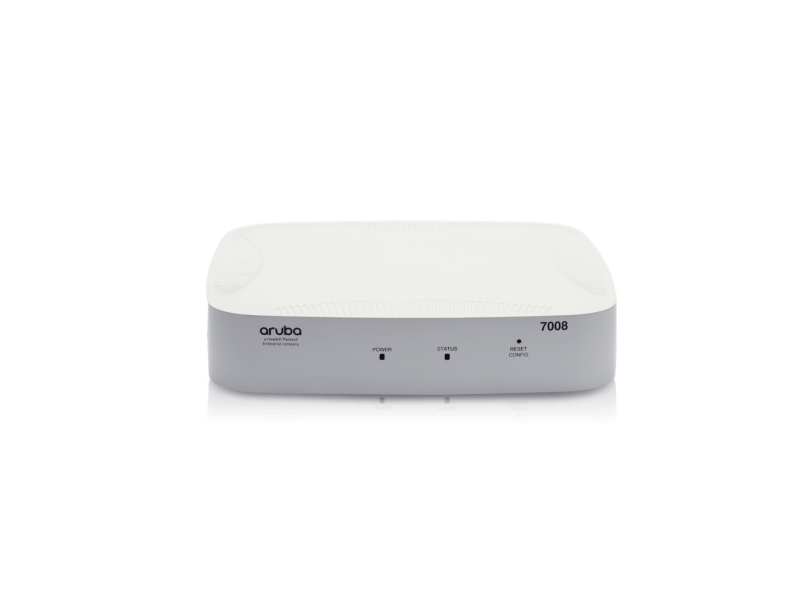

| 7008: |
- 8-Port 10/100/1000MbE (RJ45);
- 2-Port USB;
- 1-Port console (miniUSB/RJ45)
|

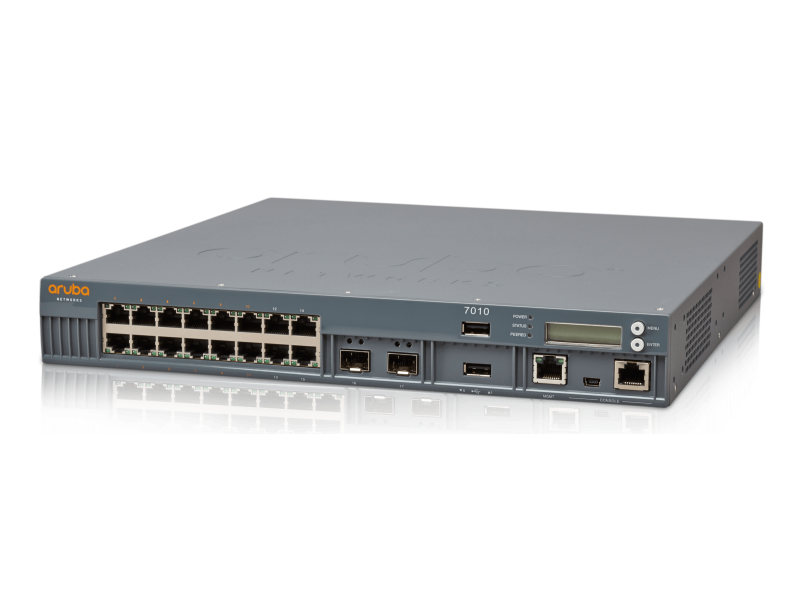

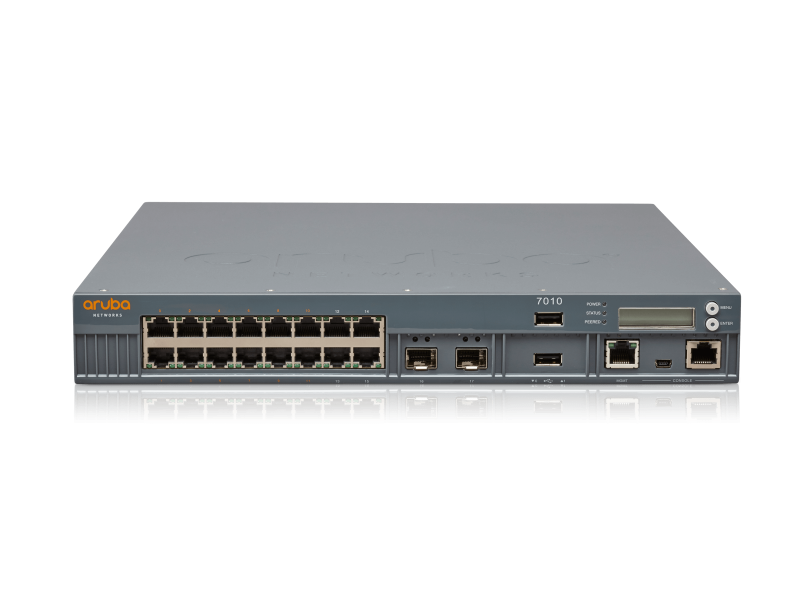

| 7010: |
- 2-Port 1GbE (SFP);
- 12-Port 10/100/1000MbE (RJ45) PoE+;
- 4-Port 10/100/1000MbE (RJ45);
- 2-Port USB;
- 1-Port out-of-band management 10/100MbE (RJ45)
- 1-Port console (miniUSB/RJ45)
|

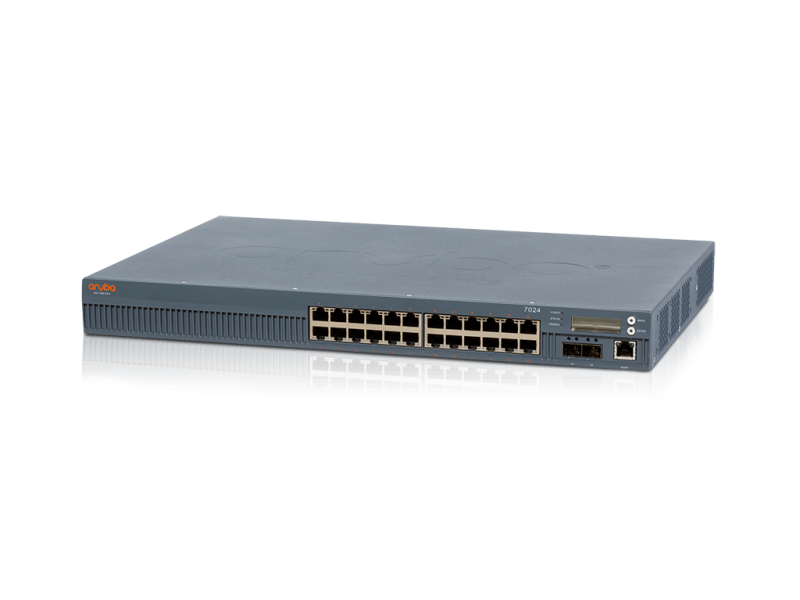

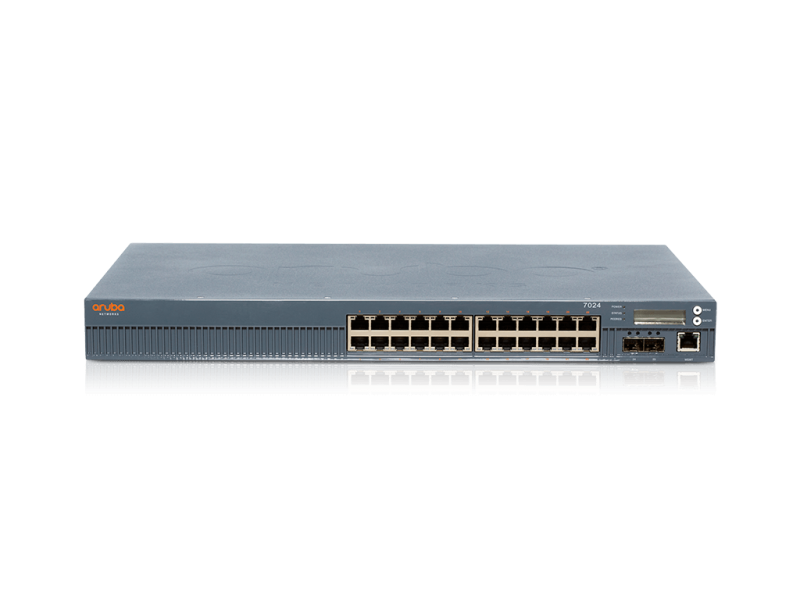

| 7024 : |
- 2-Port 10GbE (SFP+);
- 24-Port 10/100/1000MbE (RJ45);
- 1-Port USB;
- 1-Port out-of-band management 10/100MbE (RJ45)
- 1-Port console (miniUSB/RJ45)
|

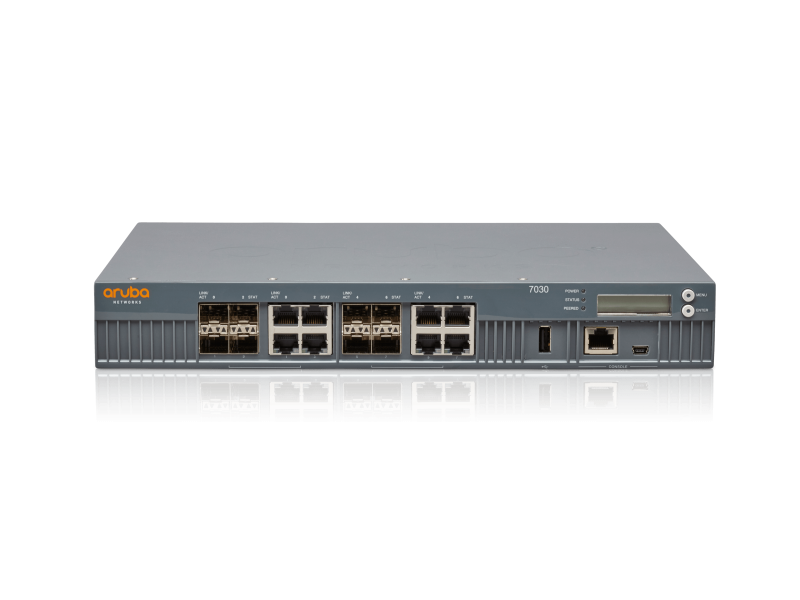

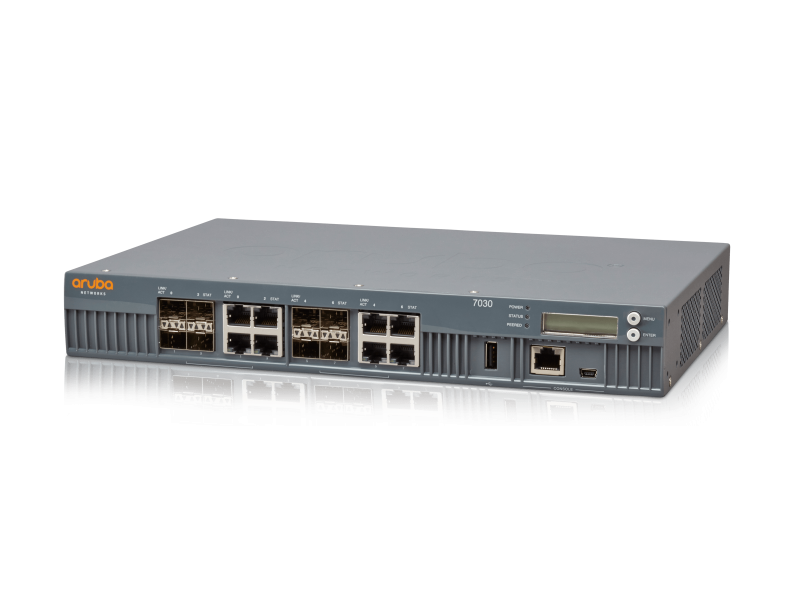

| 7030: |
- 8-Port combo 1GbE (RJ45/SFP);
- 1-Port USB;
- 1-Port out-of-band management 10/100MbE (RJ45)
- 1-Port console (miniUSB/RJ45)
|
|
| Maximum AP Supported | |
|
| Access Points (AP) |
|
| 7005: |
16 |
| 7008: |
16 |
| 7010: |
32 |
| 7024: |
32 |
| 7030: |
64 |
|
|
| Remote Access Points (RAP) |
|
| 7005: |
16 |
| 7008: |
16 |
| 7010: |
32 |
| 7024: |
32 |
| 7030: |
64 |
|
| Maximum IPSec Sessions Supported | |
|
| 7005: |
512 |
| 7008: |
512 |
| 7010: |
1,024 |
| 7024: |
1,024 |
| 7030: |
2,048 |
|
| Environmental Conditions | |
| Relative Humidity | 10 to 95% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
|
| 7010 / 7024 / 7030: |
Built-in |
| Quantity: |
|
| 7010 / 7024 / 7030: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
|
| 7005 / 7008: |
PoE |
| 7010 / 7024 / 7030: |
Not supported |
|
| Power consumption | |
|
| 7005: |
up to 16.6 W |
| 7008: |
up to 126 W |
| 7010: |
up to 190 W |
| 7024 |
up to 450 W |
| 7030: |
up to 55 W |
|
| Acoustic Noise | |
|
| 7005: |
0 dB |
| 7008: |
0 dB |
| 7010: |
up to 58.6 dB |
| 7024: |
up to 71.2 dB |
| 7030: |
up to 57.4 dB |
|
| Dimensions (HxWxD) | |
|
| 7005: |
41 x 200 х 200 mm
(1.6 x 7.9 x 7.9 in)
|
| 7008: |
42 x 203.2 х 203.2 mm
(1.65 x 8.0 x 8.0 in)
|
| 7010: |
44.2 mm (1U) x 317.5 mm х 337 mm
(1.74 in (1U) x 12.75 in x 13.3 in)
|
| 7024: |
43.7 (1U) x 442 х 313 mm
(1.72 (1U) x 17.4 x 12.32 in)
|
| 7030: |
44 (1U) x 305 х 211 mm
(1.7 (1U) x 12 x 8.3 in)
|
|
| Maximum Weight | |
|
| 7005: |
0.92 kg (2.03 lb) |
| 7008: |
1.0 kg (2.2 lb) |
| 7010: |
3.4 kg (7.5 lb) |
| 7024: |
5.127 kg (11.3 lb) |
| 7030: |
2.06 kg (4.54 lb) |
|
