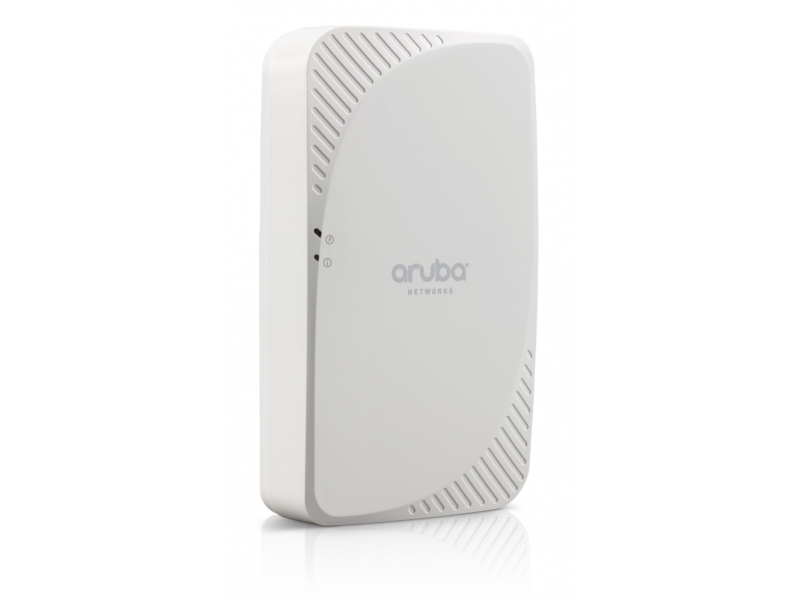

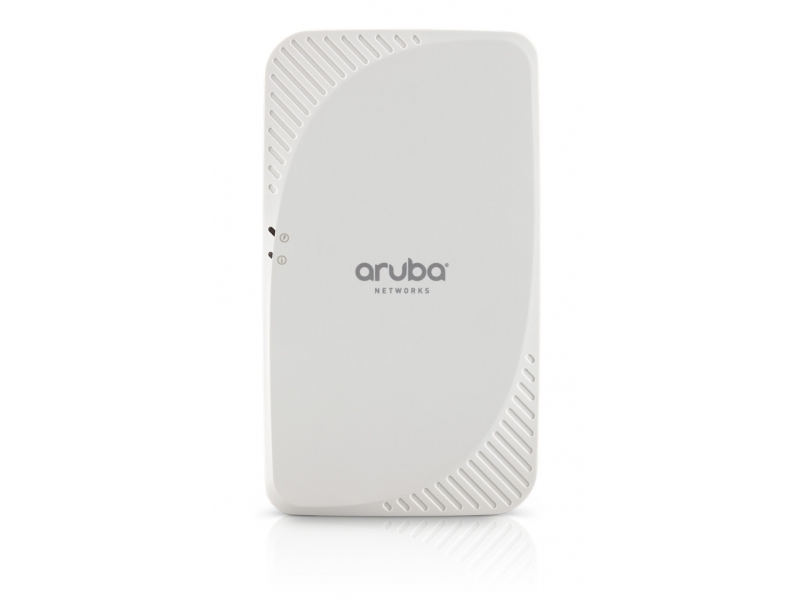

ARUBA AP-205H Access Point

Download AP-250H series Datasheet (eng)

Available to quote:

AP-205H

Request a Quote
SPECIFICATIONS
Interfaces
AP-205H:
  • 1-Port 10/100/1000MbE (RJ45) (WAN) PoE;
  • 3-Port 10/100MbE (RJ45) (LAN) (1 port with PoE output (802.3af);
  • 1-Port passive pass-through (RJ45)
  • 1-Port USB;
  • 1-Port console (RJ45)
Access Point type

Indoor
Antenna type

internal
Mounting

Wall / Desktop mount
Regulatory

FCC , CE Marked,  R&TTE Directive 1995/5/EC,  Low Voltage Directive 72/23/EEC,  EN 300 328,  EN 301 489,  EN 301 893, EN 60601-1-1, EN60601-1-2
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n: 2×2 MIMO with up to two spatial streams
Management

Aruba Mobility Controller, Instant AP
Environmental Conditions
Relative Humidity

5 to 93 %
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Not supported
DC PSU:
Type: PoE+ (802.3at)


Power consumption

up to 13 W
Dimensions (HxWxD)

86 x 40 х 150 mm

(3.38 x 1.57 x 5.90 in)
Maximum Weight

0.375 kg (0.82 lb)
